Hardware
- Size: 516 X 390 X 8mm
- Weight: 2.5Kg
- Effective area: 480 X 320mm
- Number of sensors: 96 X 64=6144
- Sampling rate: up to 300 FPS
- Measuring range: 120N/CM2
- USB 2.0 connection to PC
- Pressure mat runs on USB power

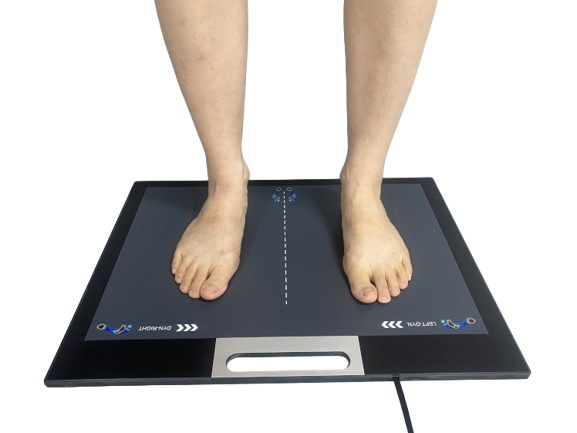

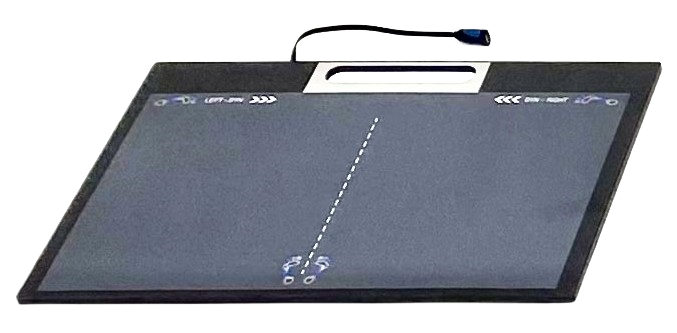

WatMat 480 Foot Pressure Mat
A child weight: about 20kg.

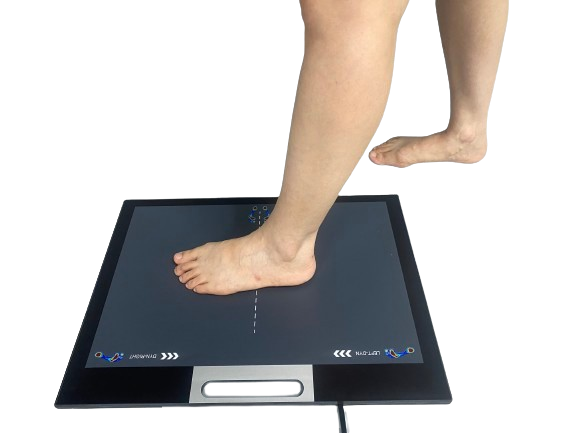

WatMat 480 can measure the foot pressure accurately

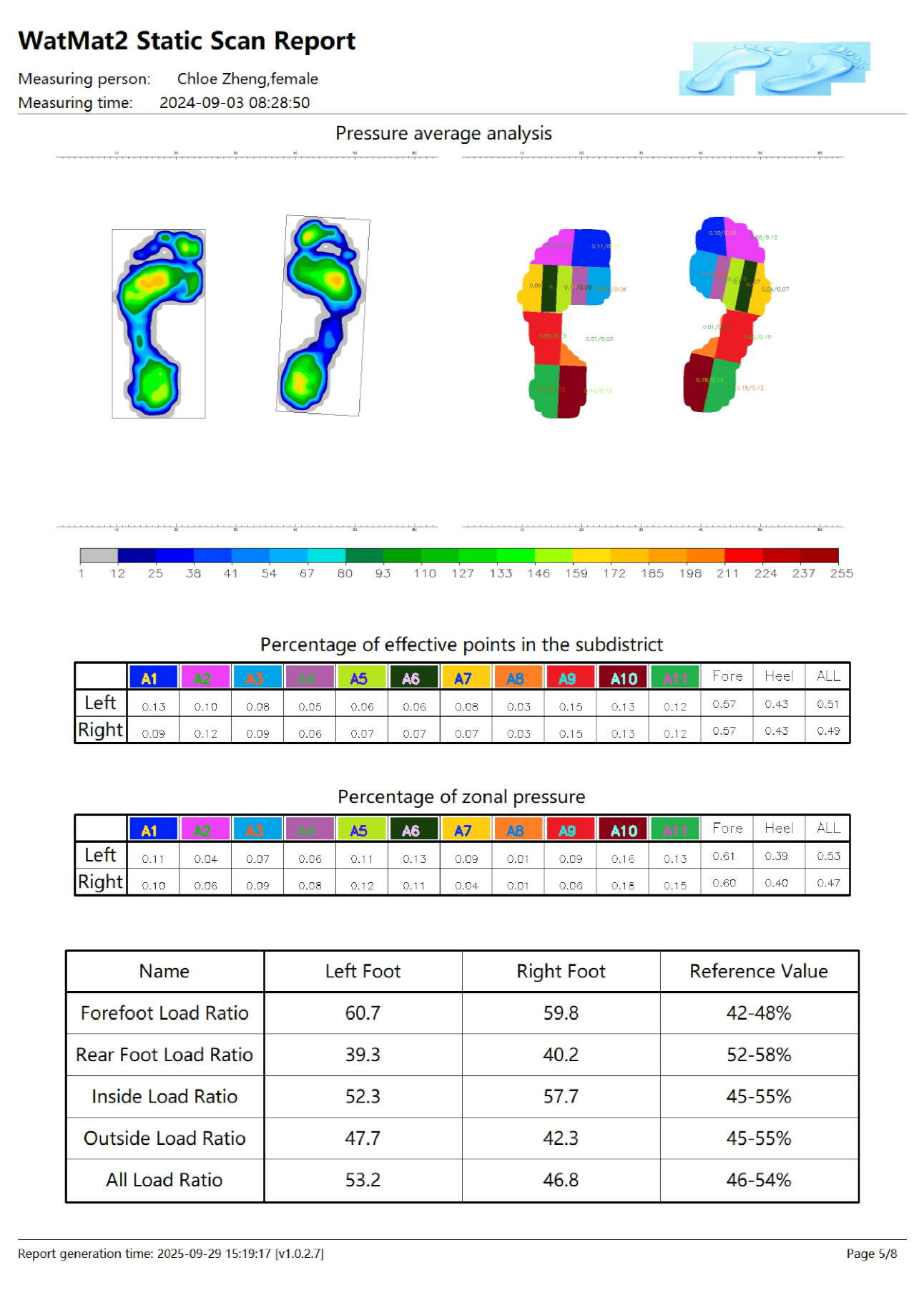

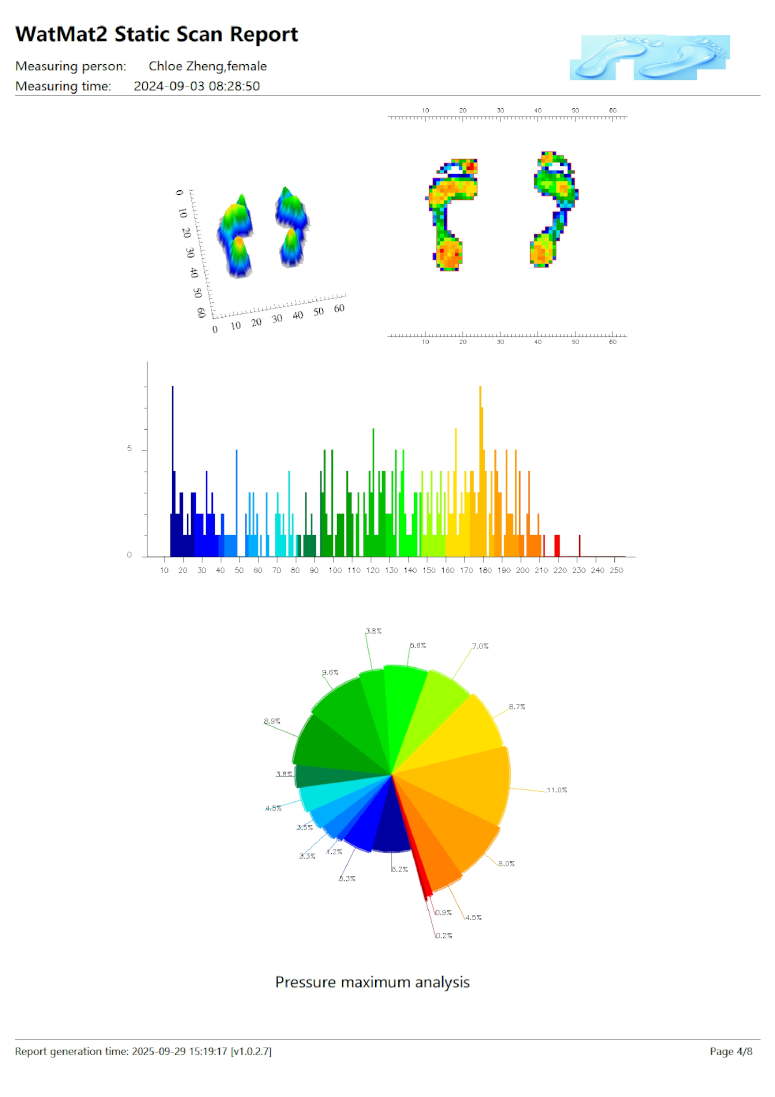

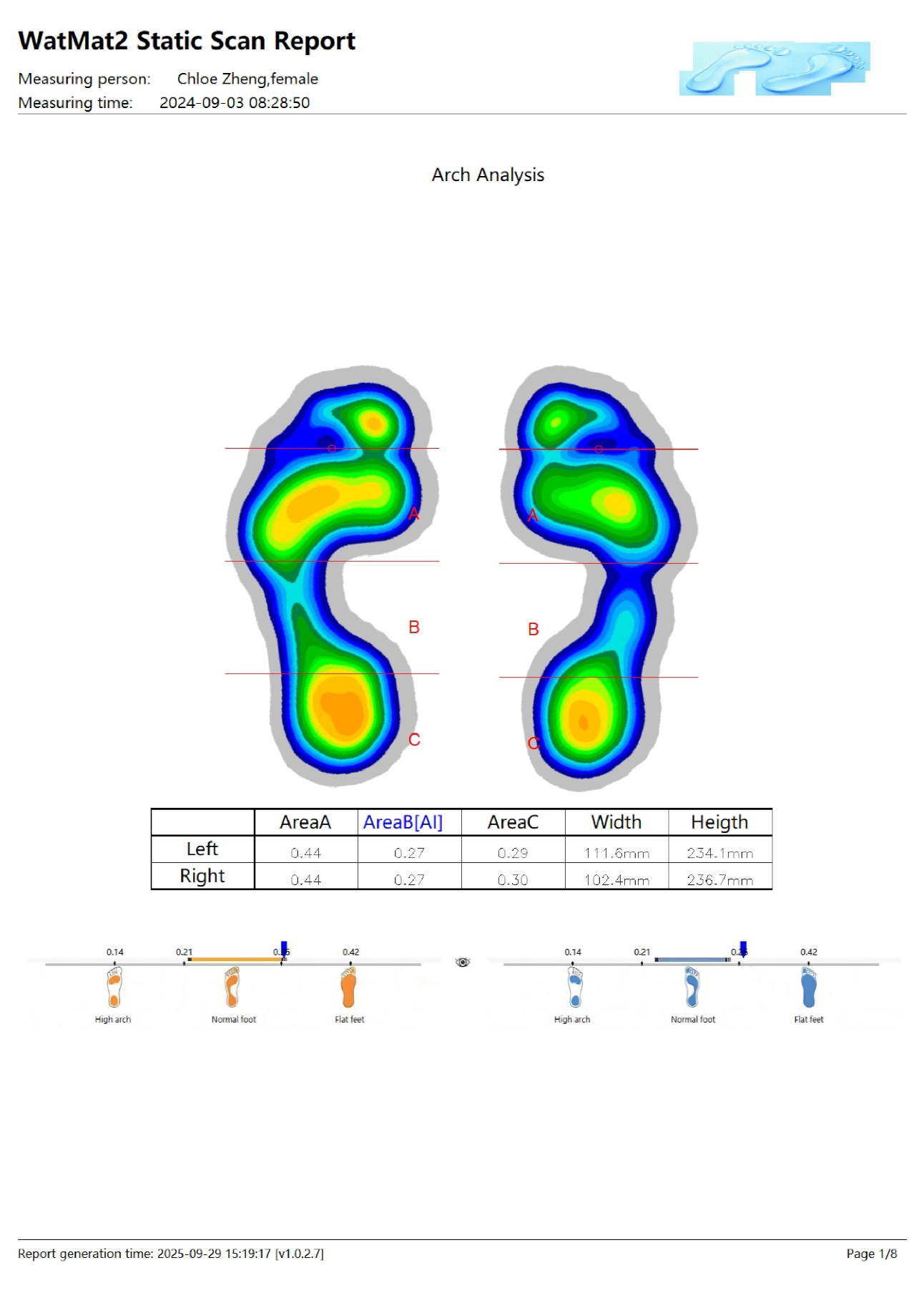

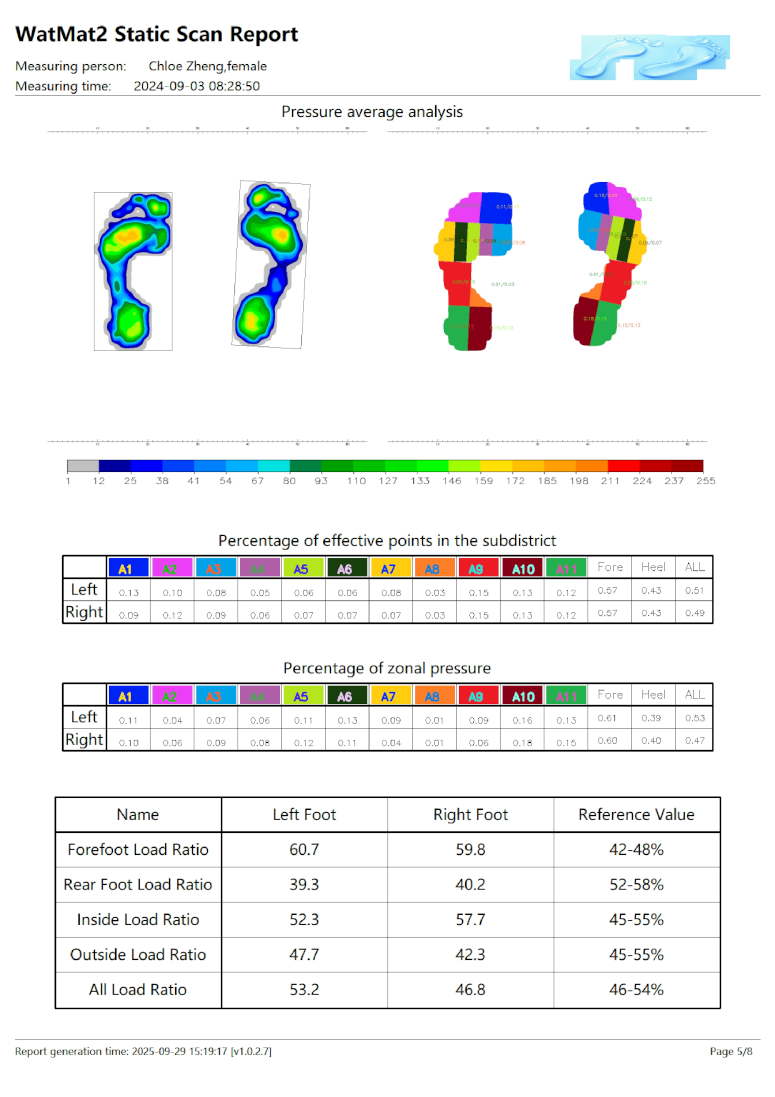

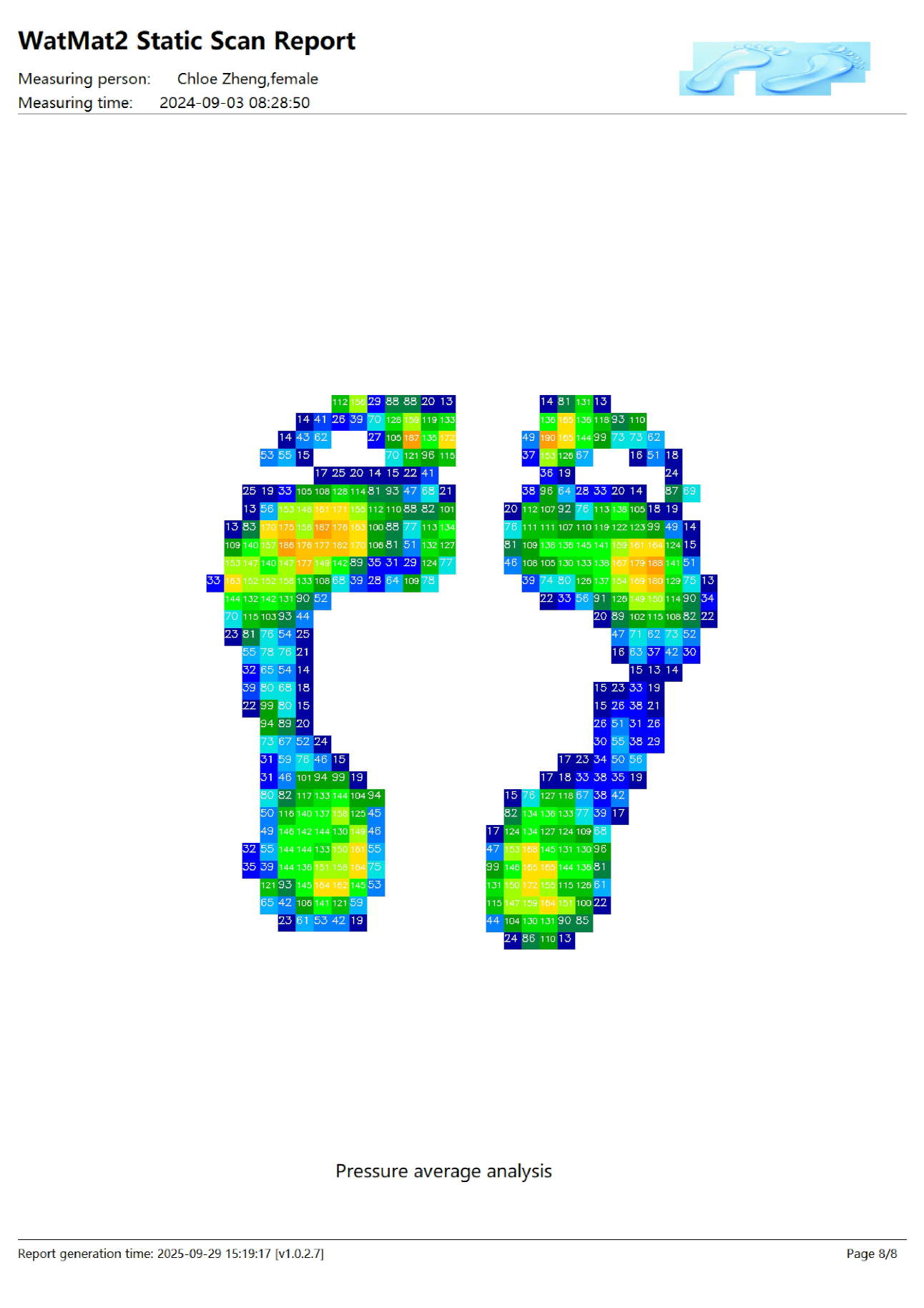

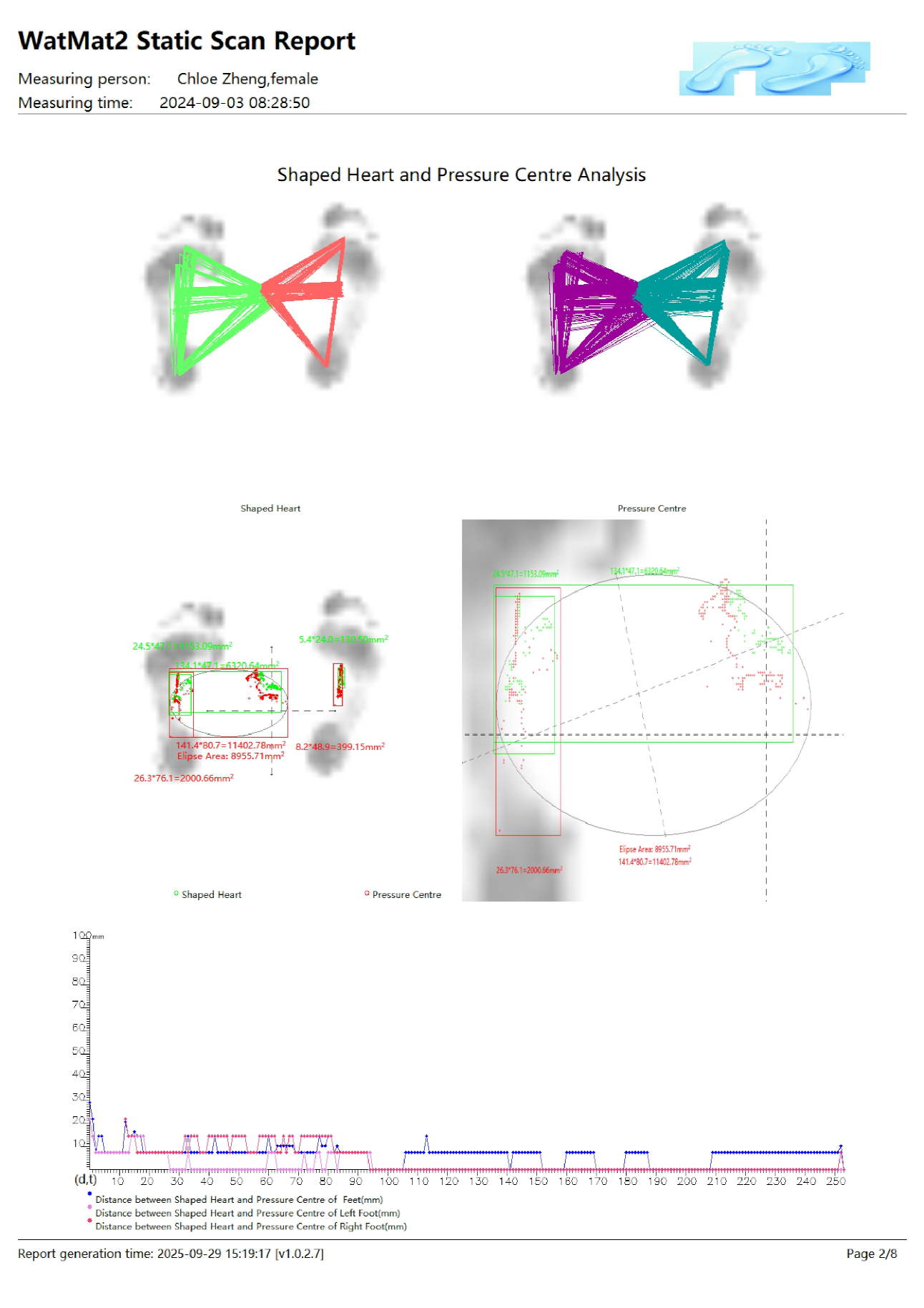

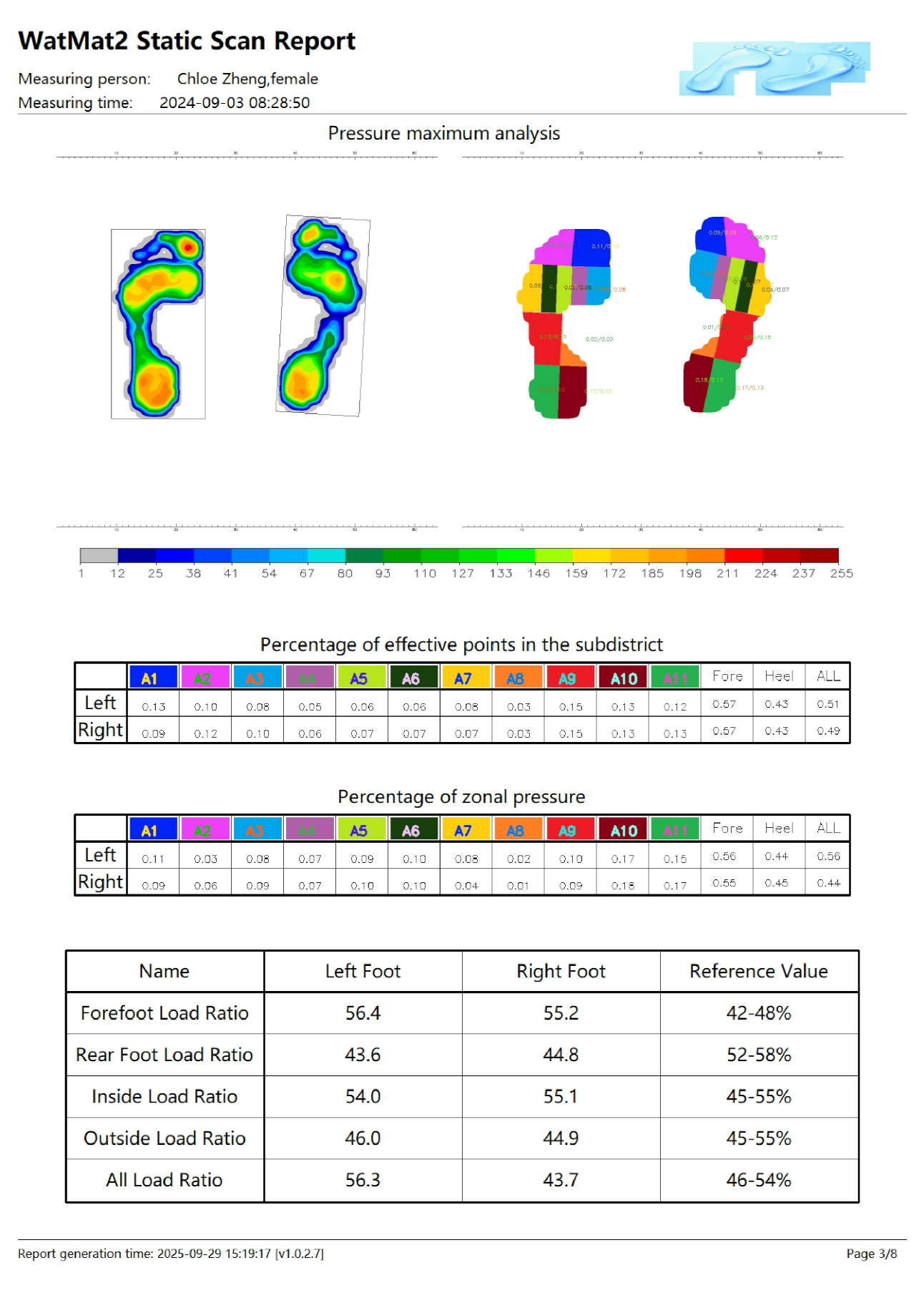

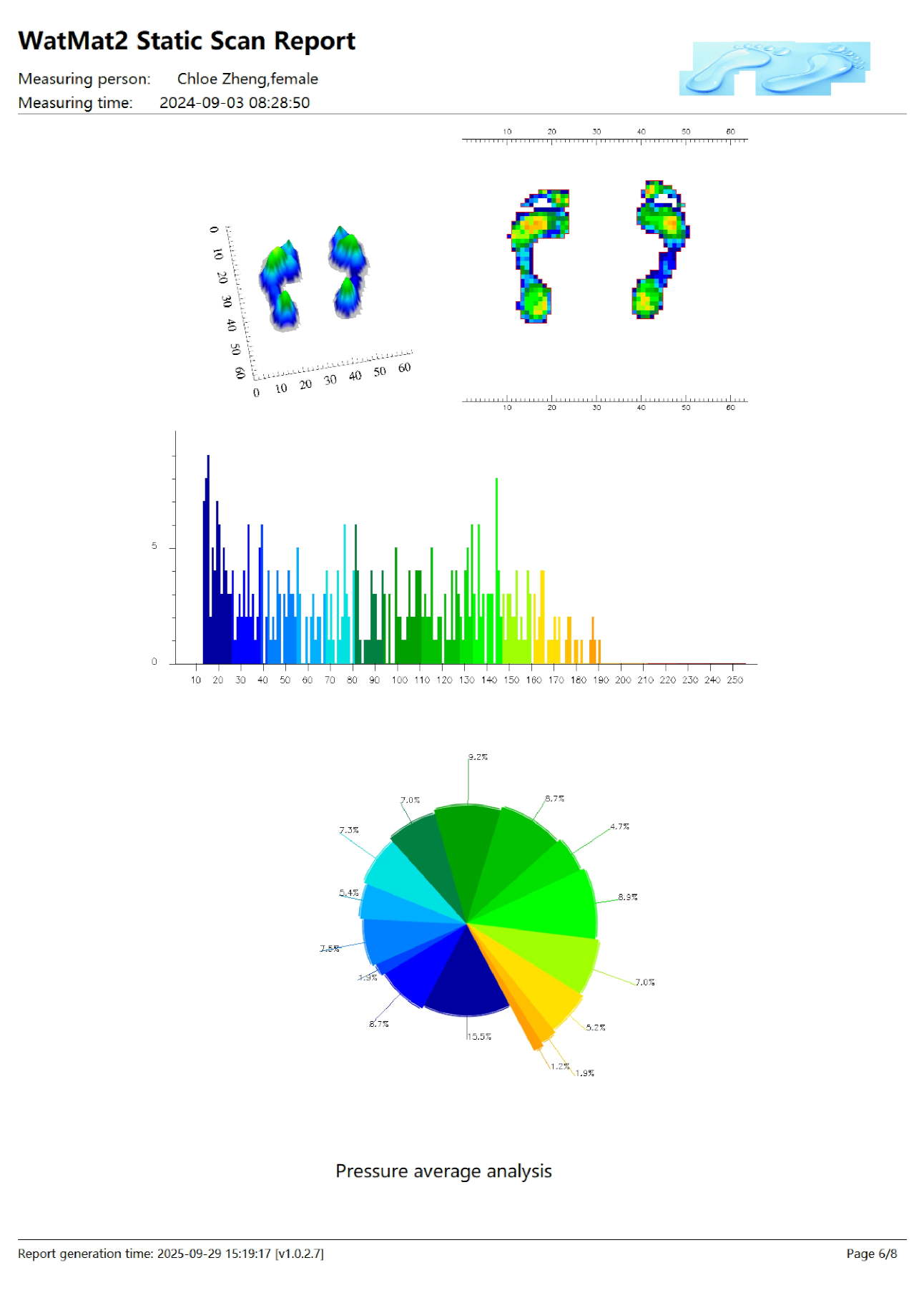

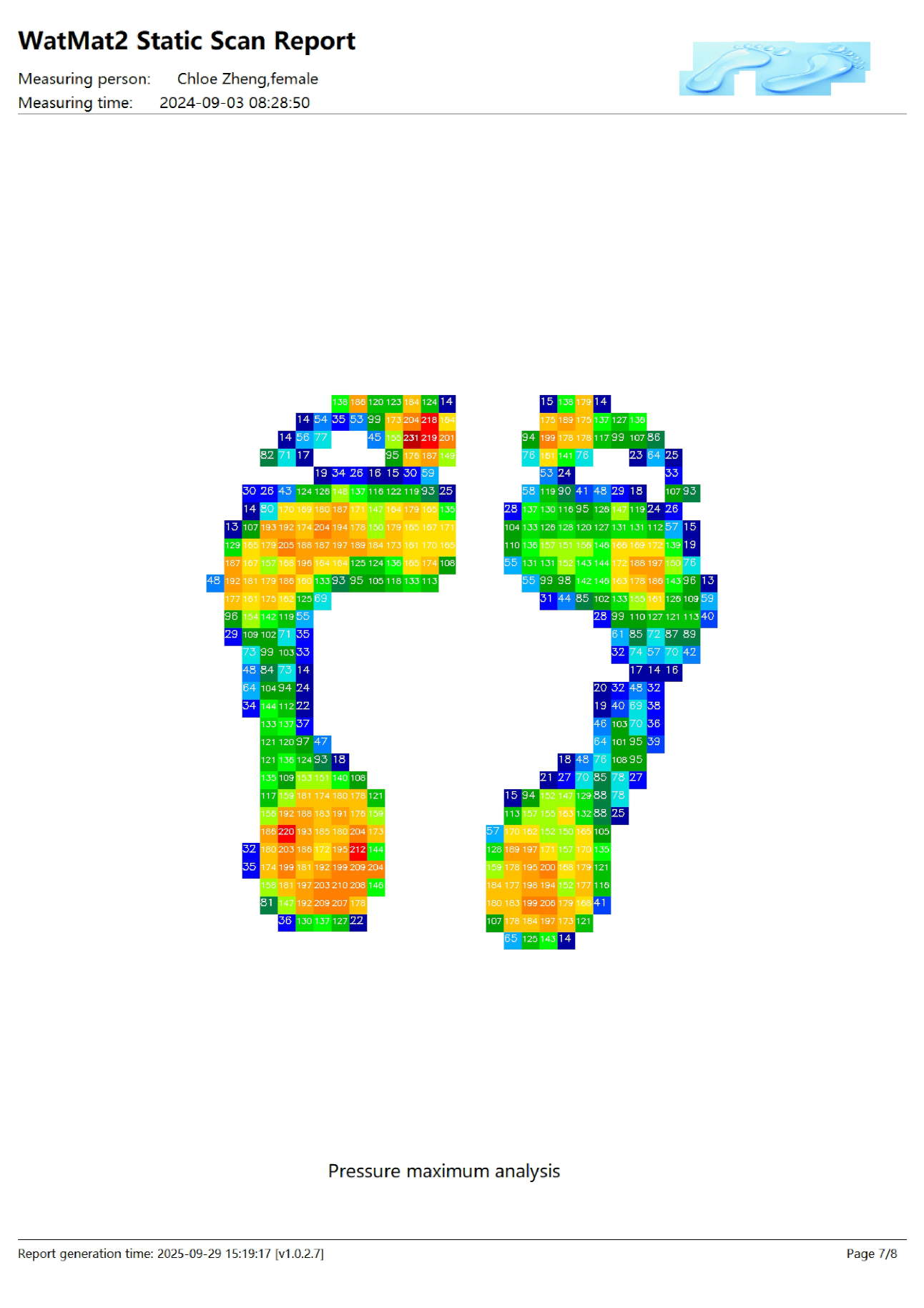

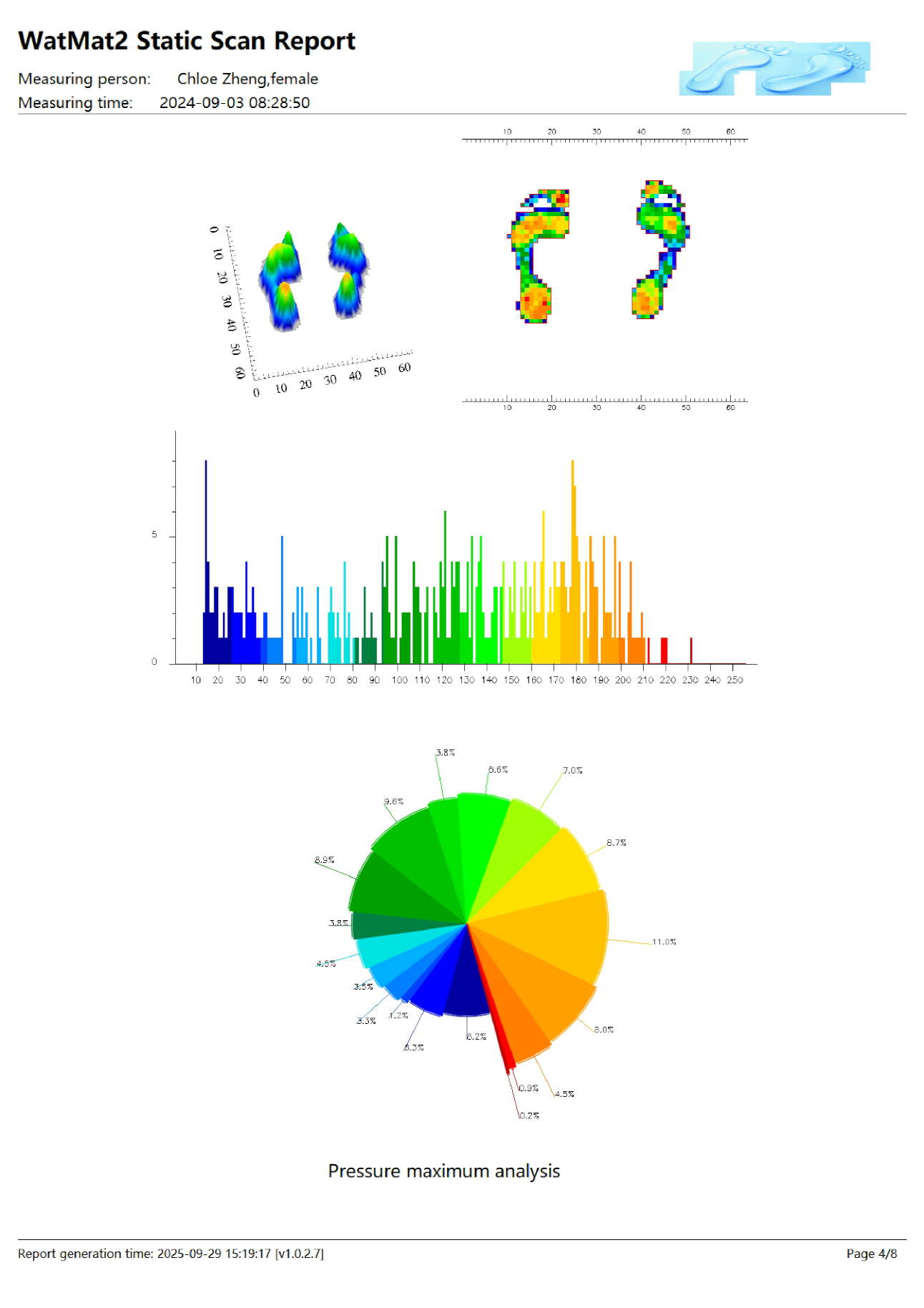

Standing foot pressure analysis (Static)

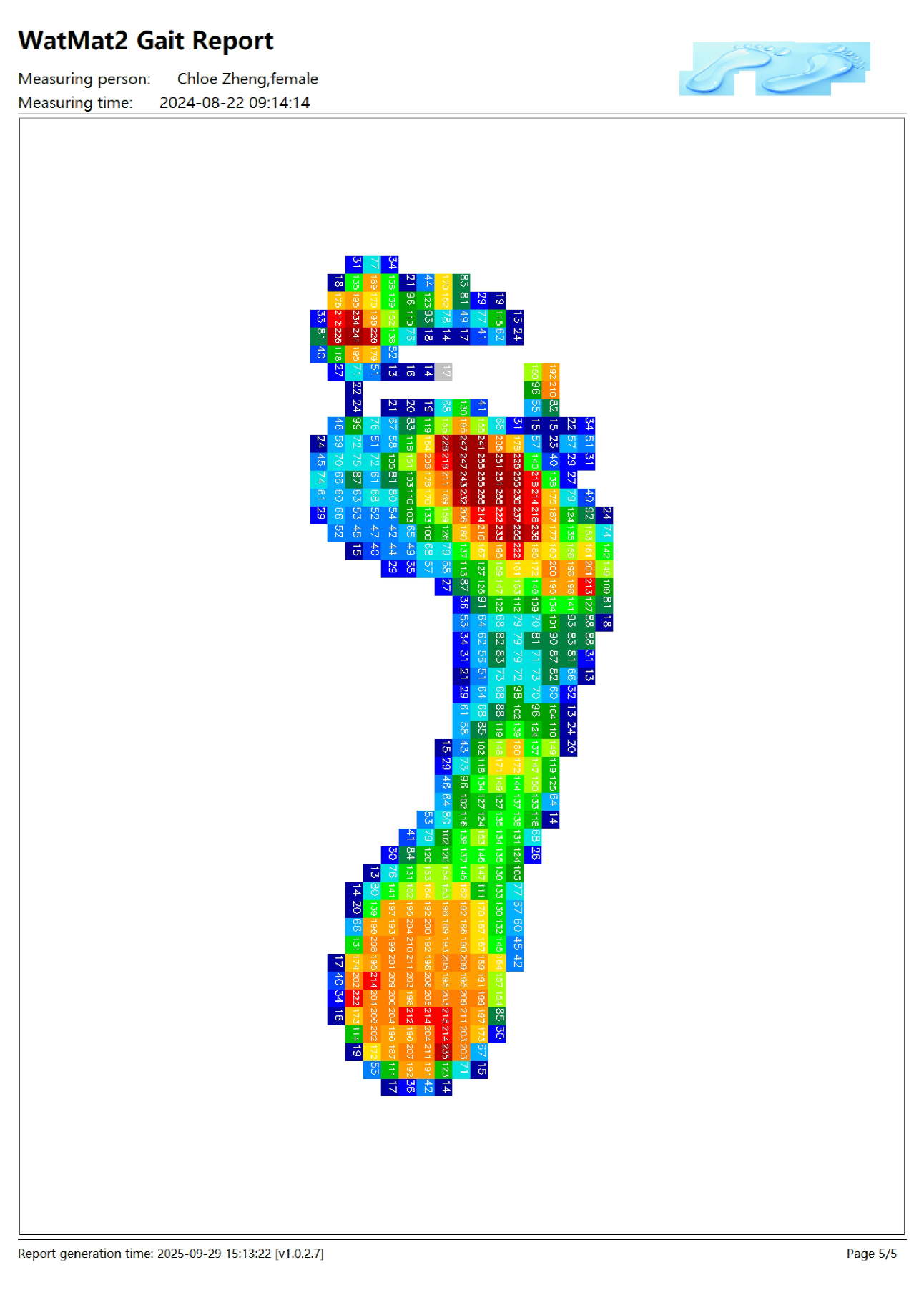

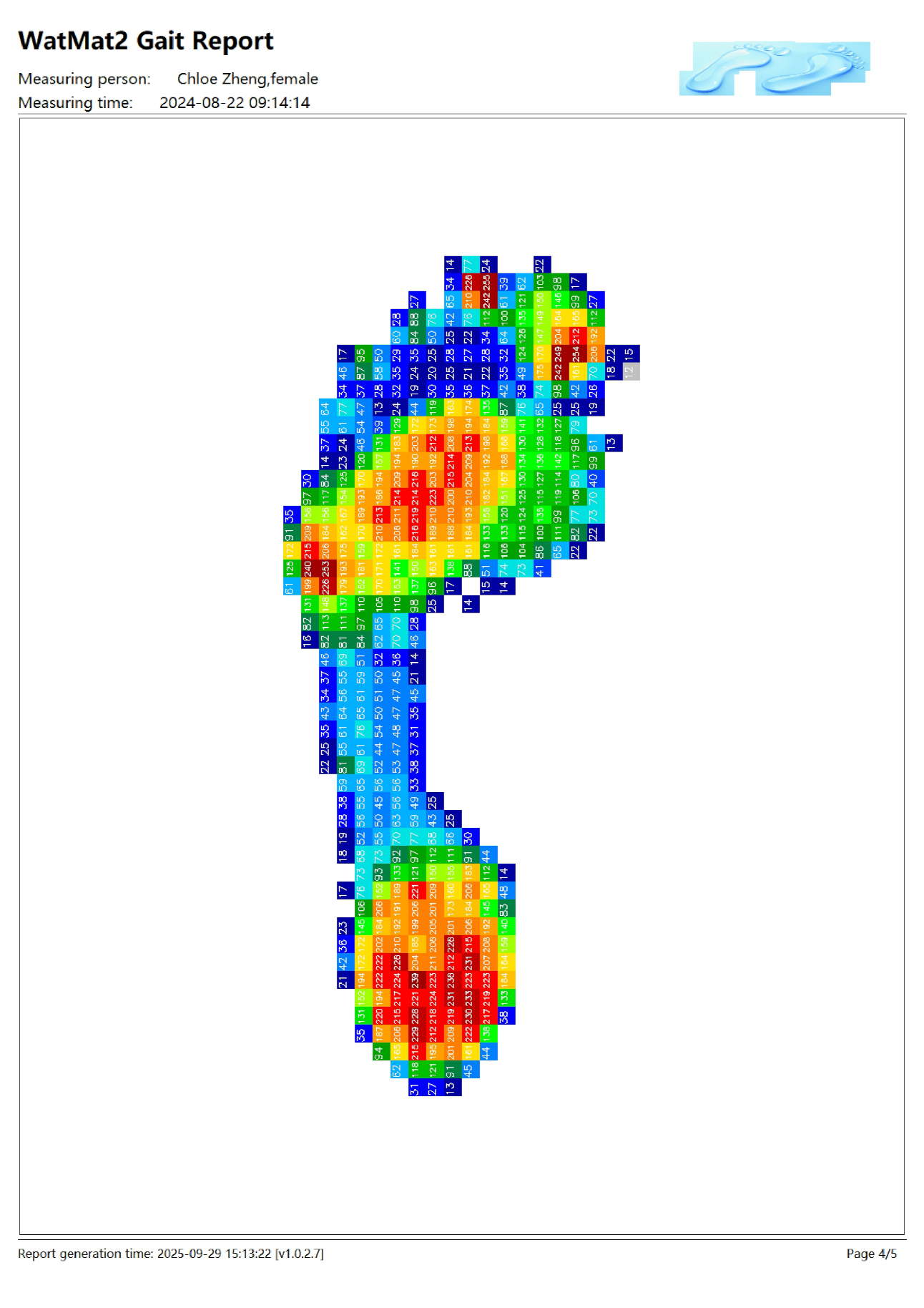

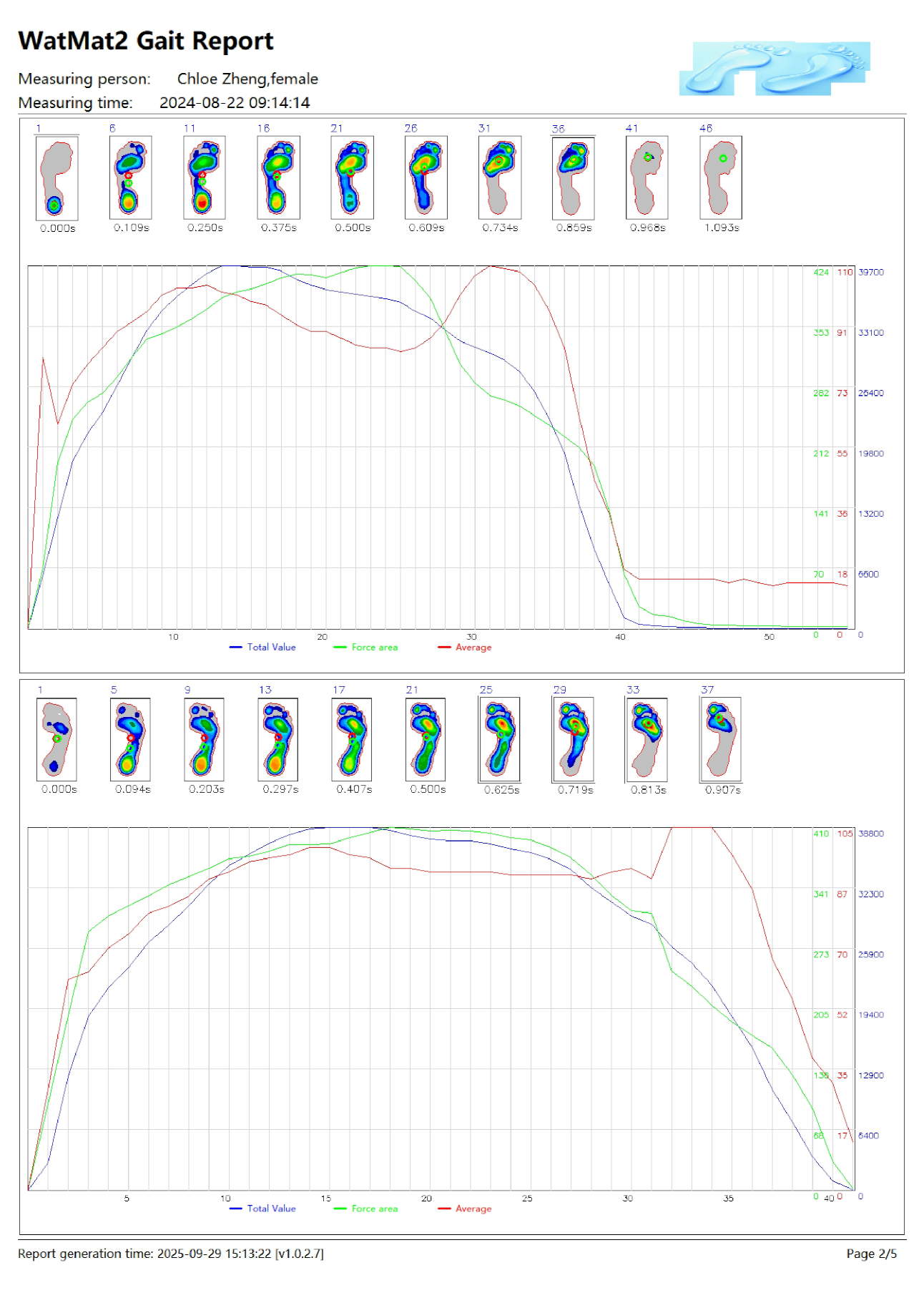

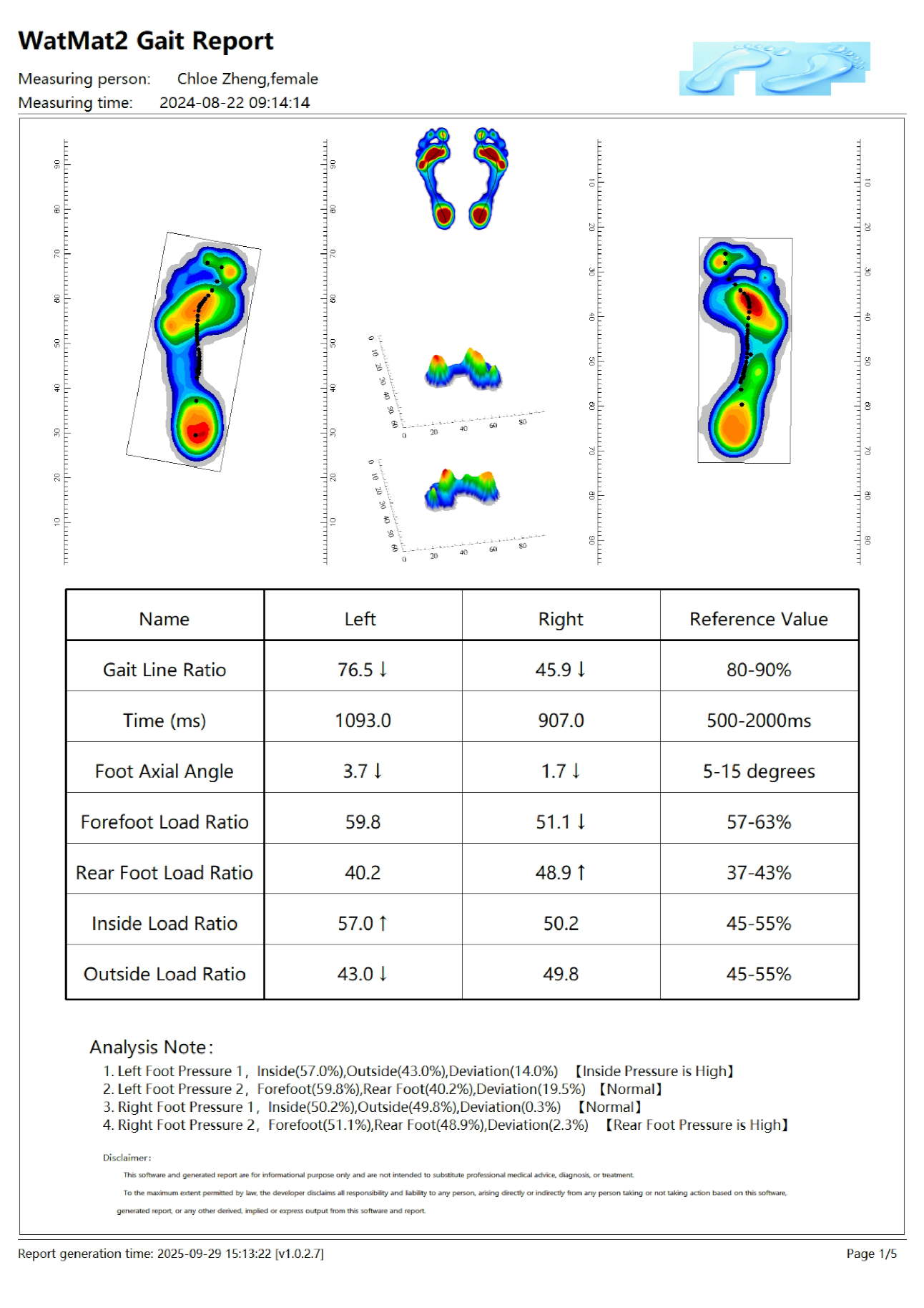

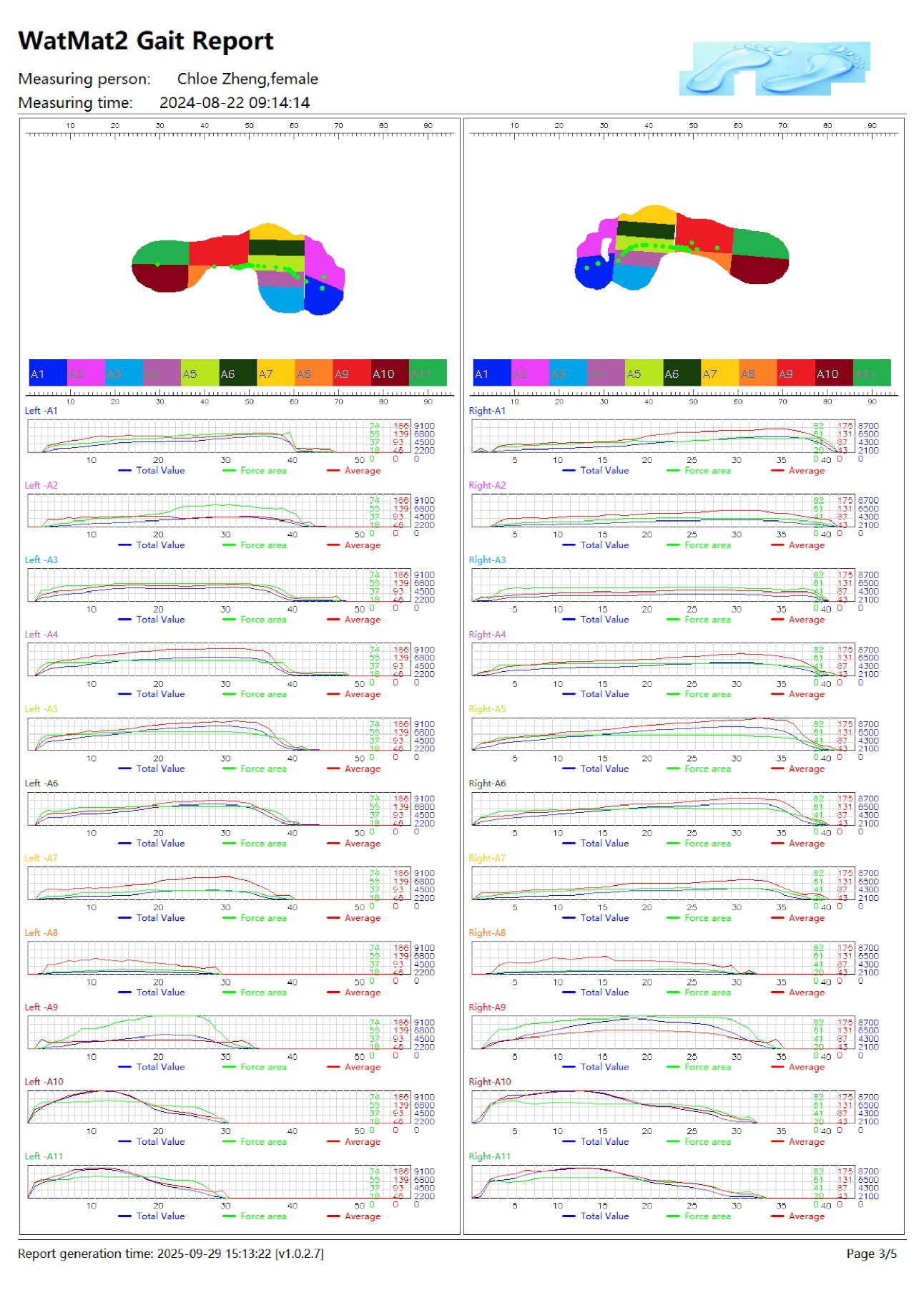

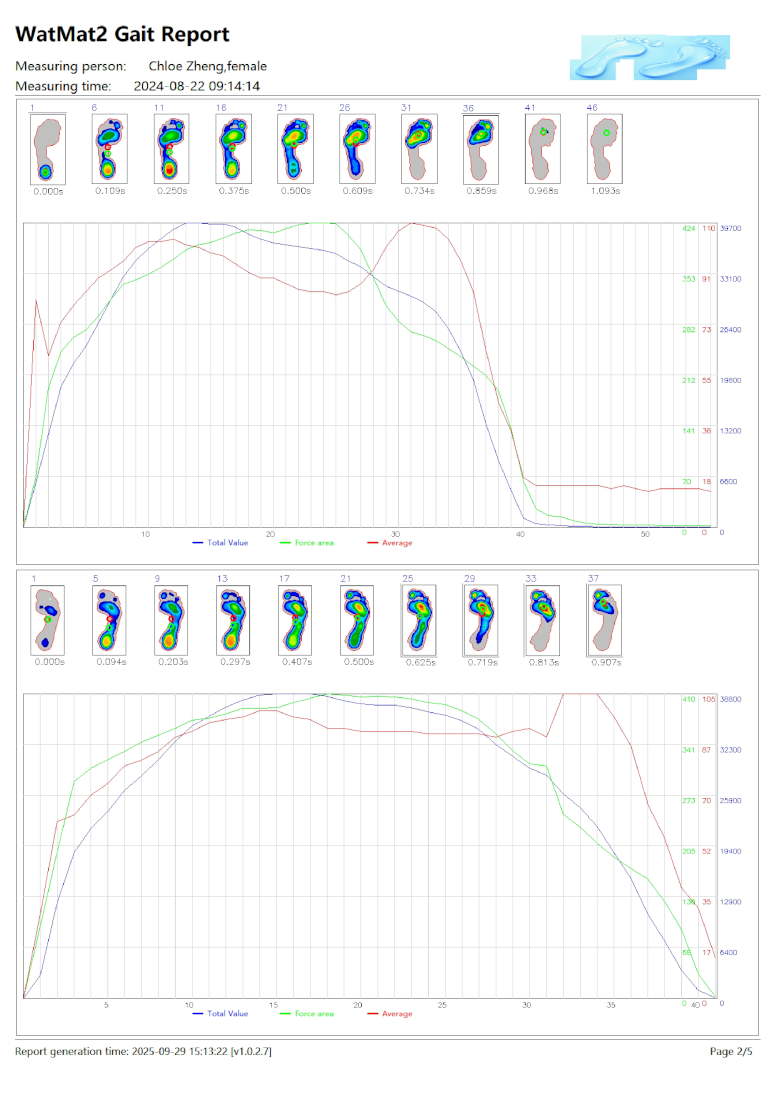

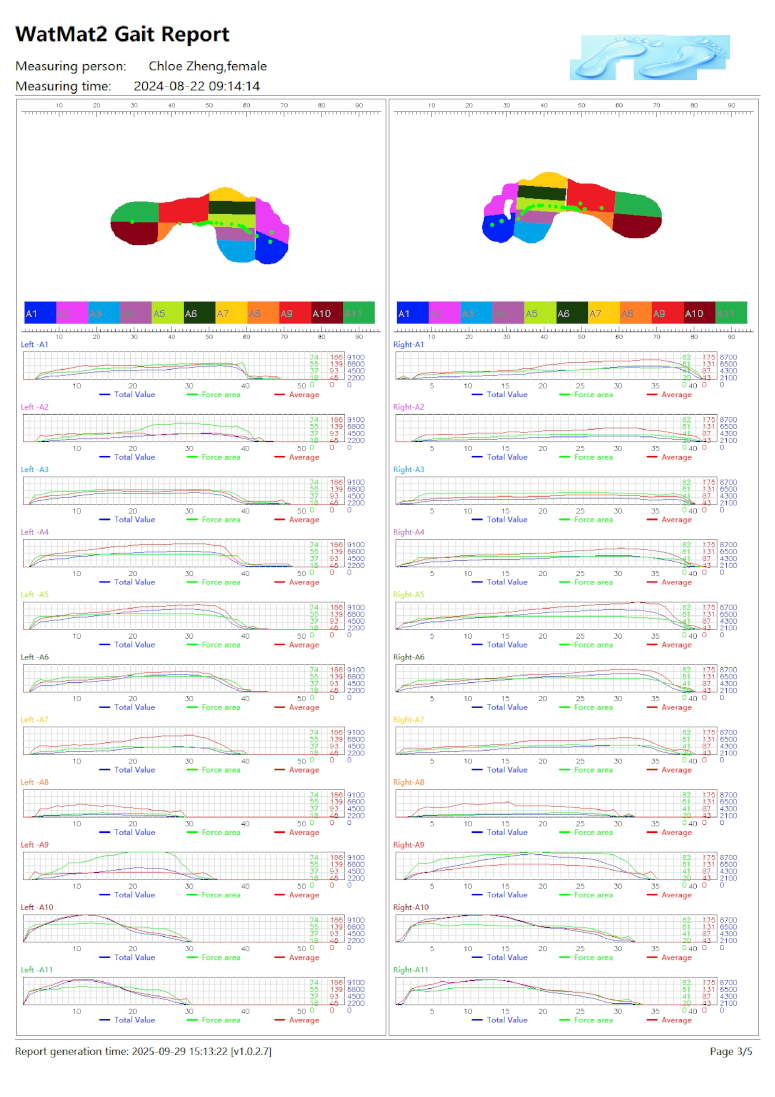

Walking foot pressure analysis (Dynamic)
Features
- Portable: Small, lightweight, thin, and completely flat
- High density sensor array. 5mm intervals. 6144 sensors
WatMat 480 Foot Pressure Mat GALLERY
