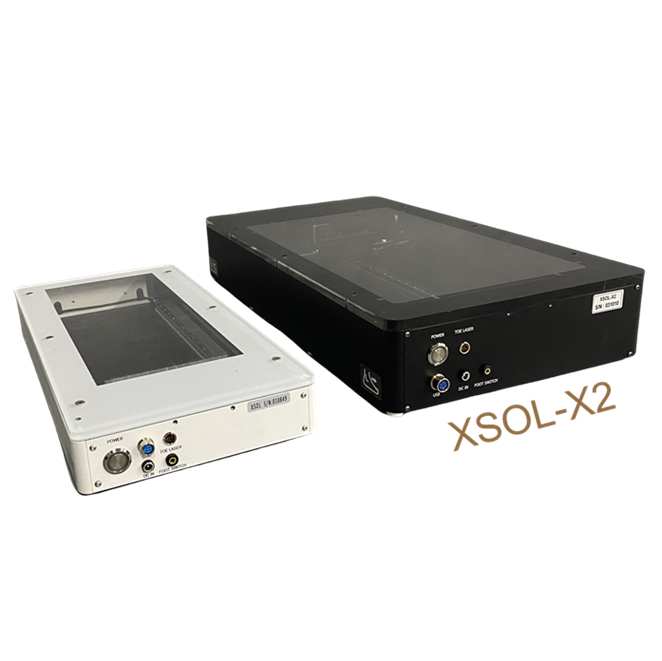

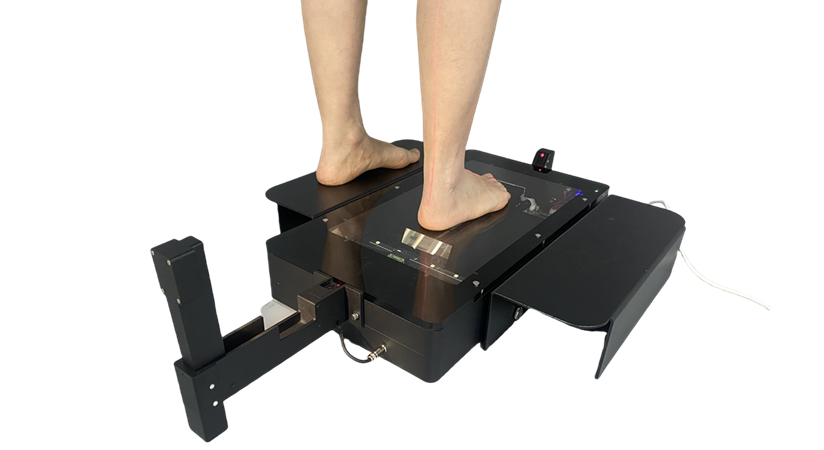

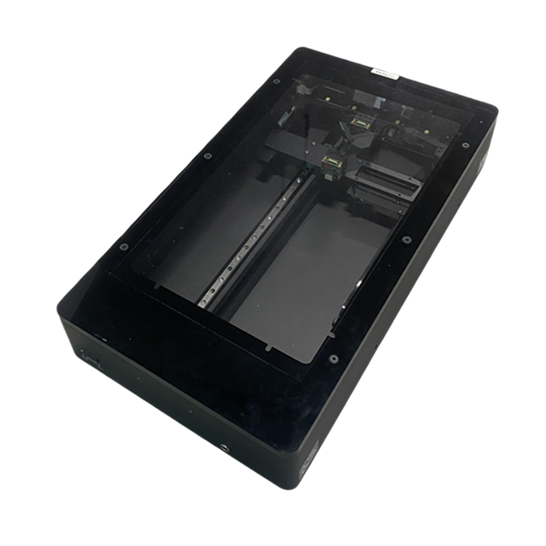

XSOL-X2 3D Laser Foot Plantar Scanner

Features

XSOL-X2 vs XSOL-X: 1. Clean scan under varied lighting conditions. 2. Scan foam impression box.
XSOL software improves on USOL software (Same file formats).

Hardware

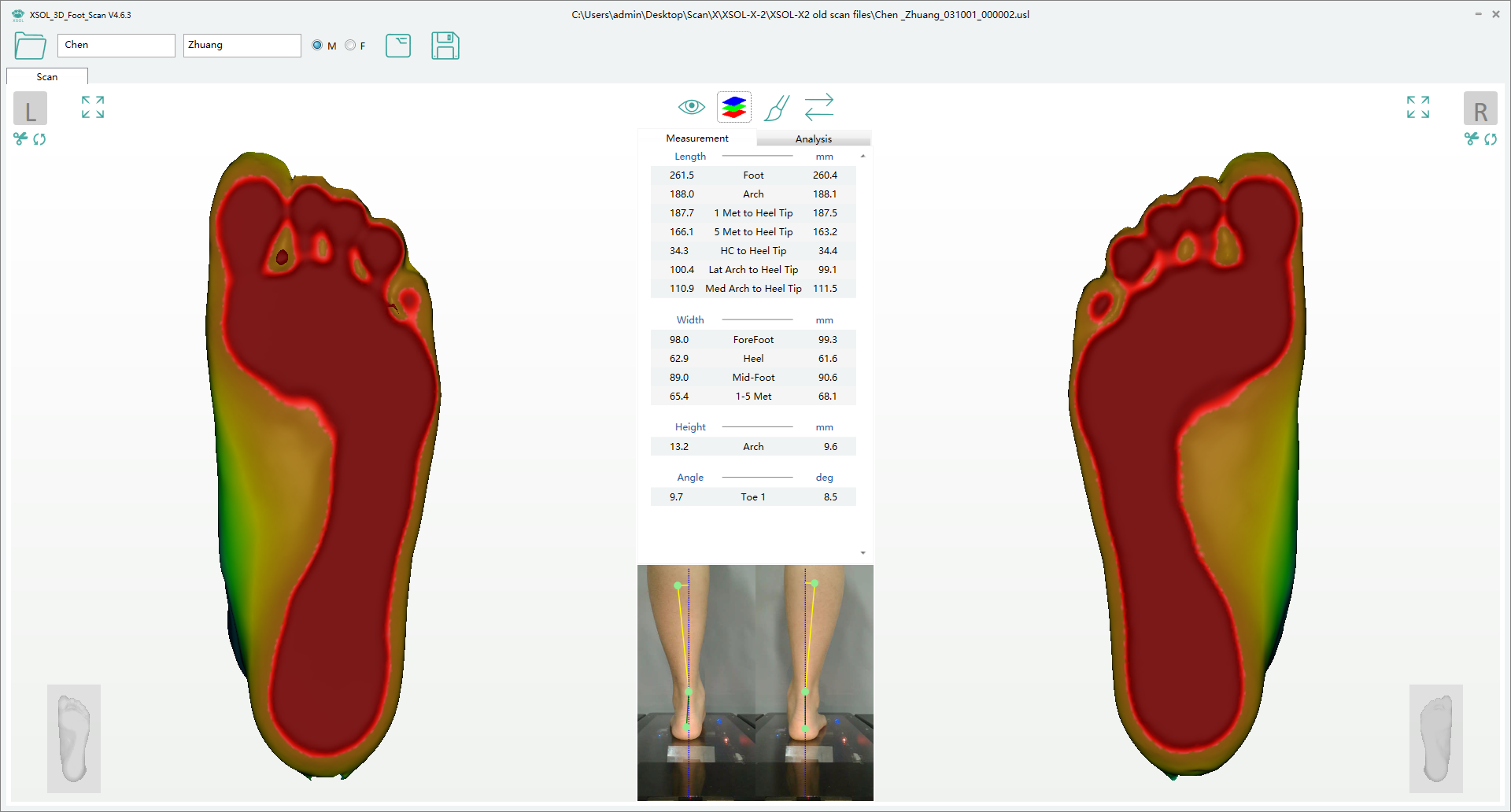

Foot Plantar 3D with color in non/semi/full weight

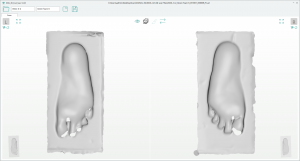

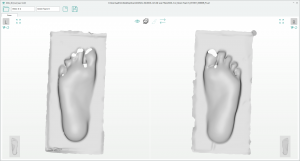

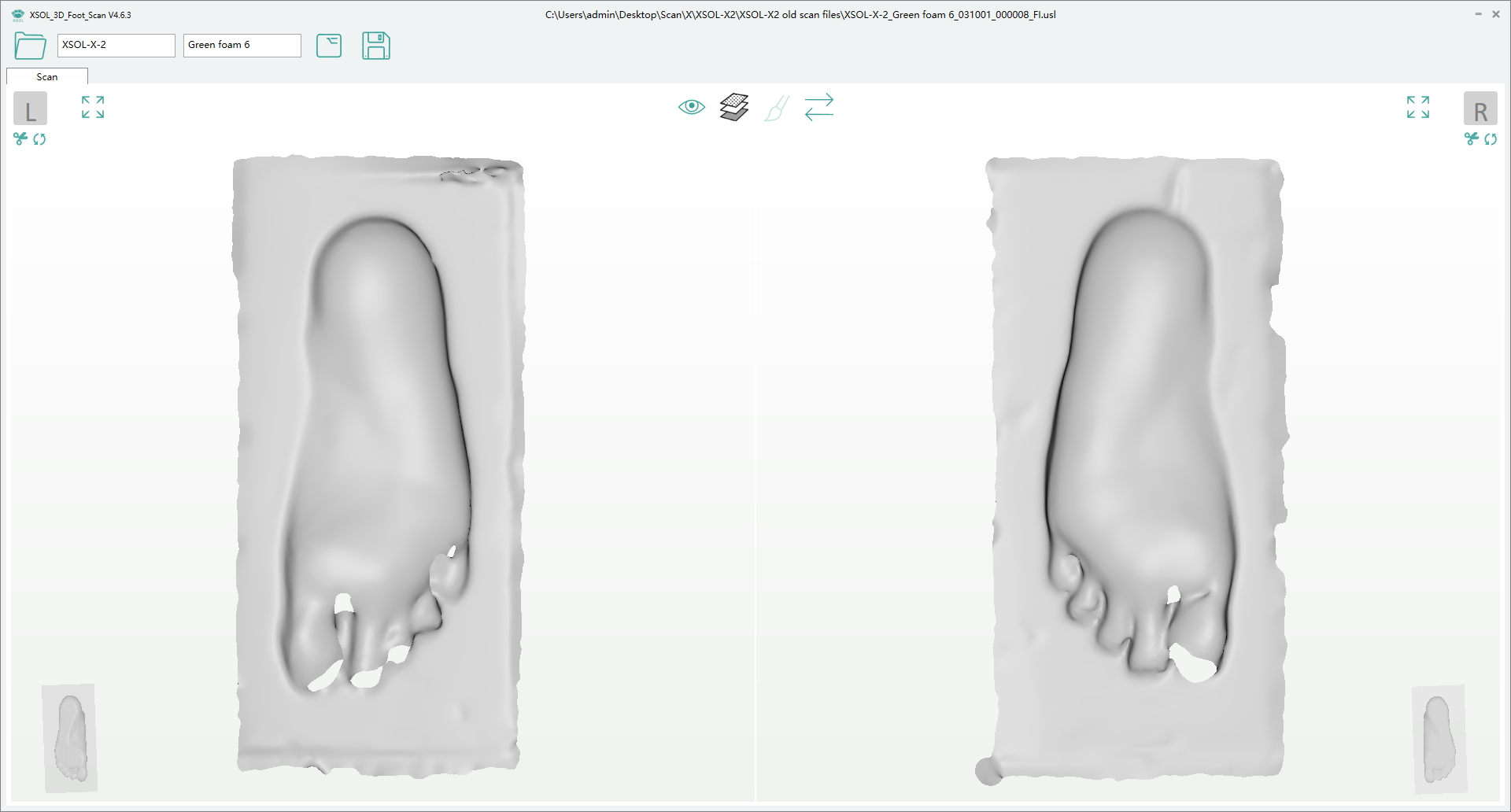

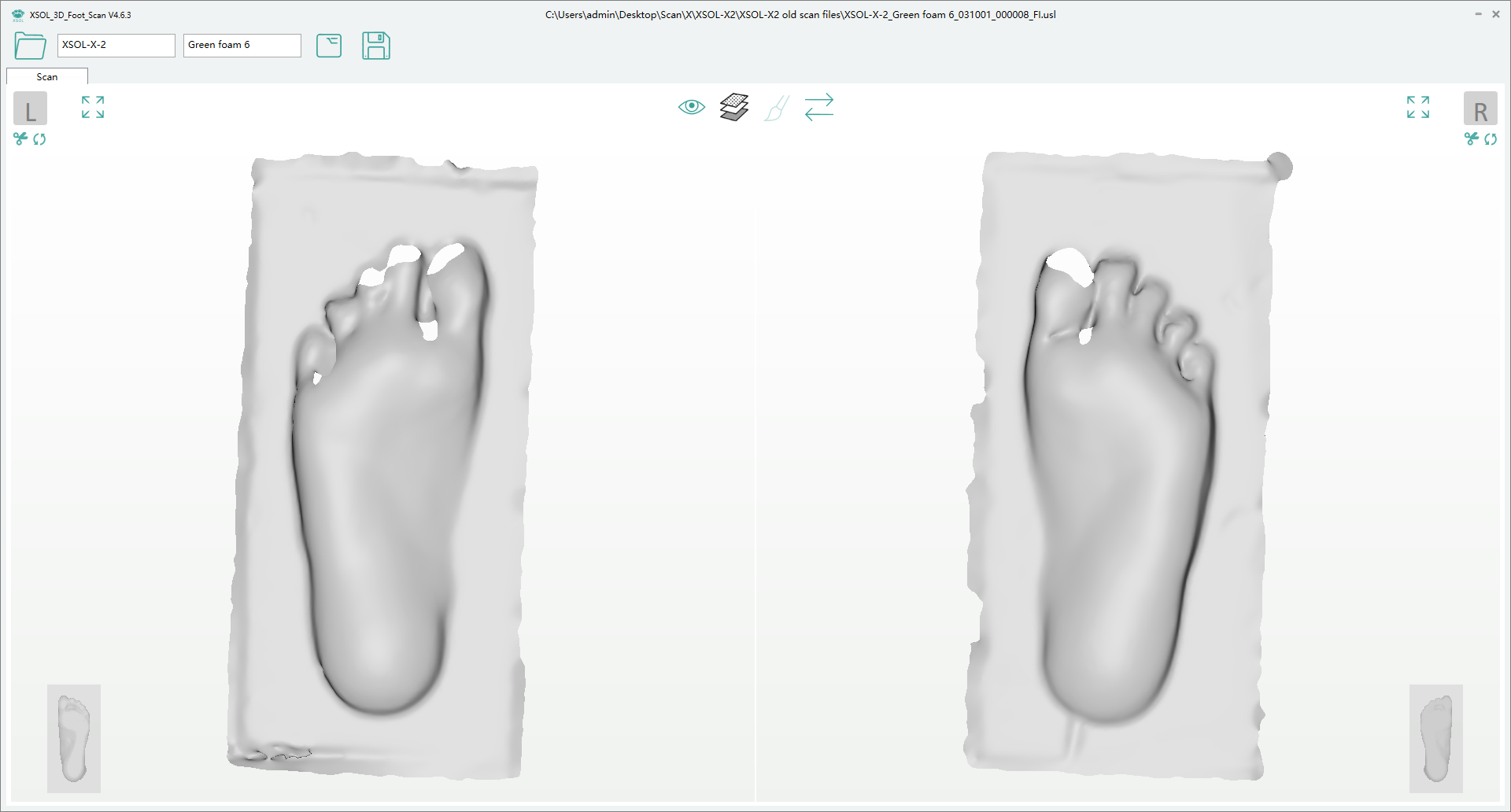

Foam Impression and Plaster Cast
Laser 3D Scan 6.6s/8.8s one-way
Color texture 4.3s/5.9s return trip
PC Minimum CPU N100 8G RAM
Integrated GPU OK; Min 1080P display
Software UI or Foot switch to activate scan
Room lighting (improved noise filtering than XSOL-X)
Heel camera has higher resolution than XSOL-X
Clean 3D mesh, +/- 1.0mm accuracy
Scan Volume: 330L X 150W X 80H mm
Size: 565L X 310W X 93H mm
Weight: 7.6Kg (16.7Lb)
Load Capacity: 180Kg (397Lb)
Power adapter AC 100-240V; DC 12V/3A
Customizable panels design and color
CE/FDA/PSE certification/registration
One-year limited warranty

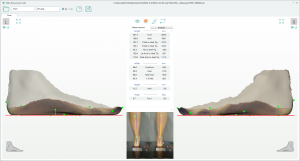

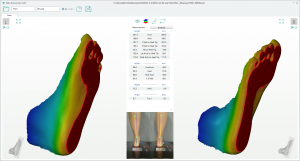

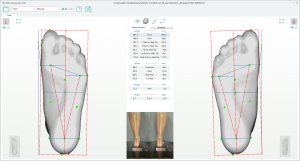

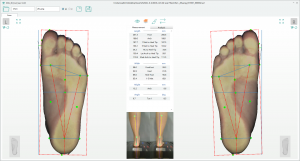

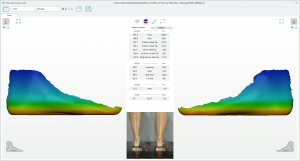

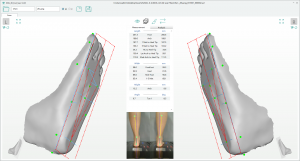

Software

Win10/11, doesn't support Win7/8

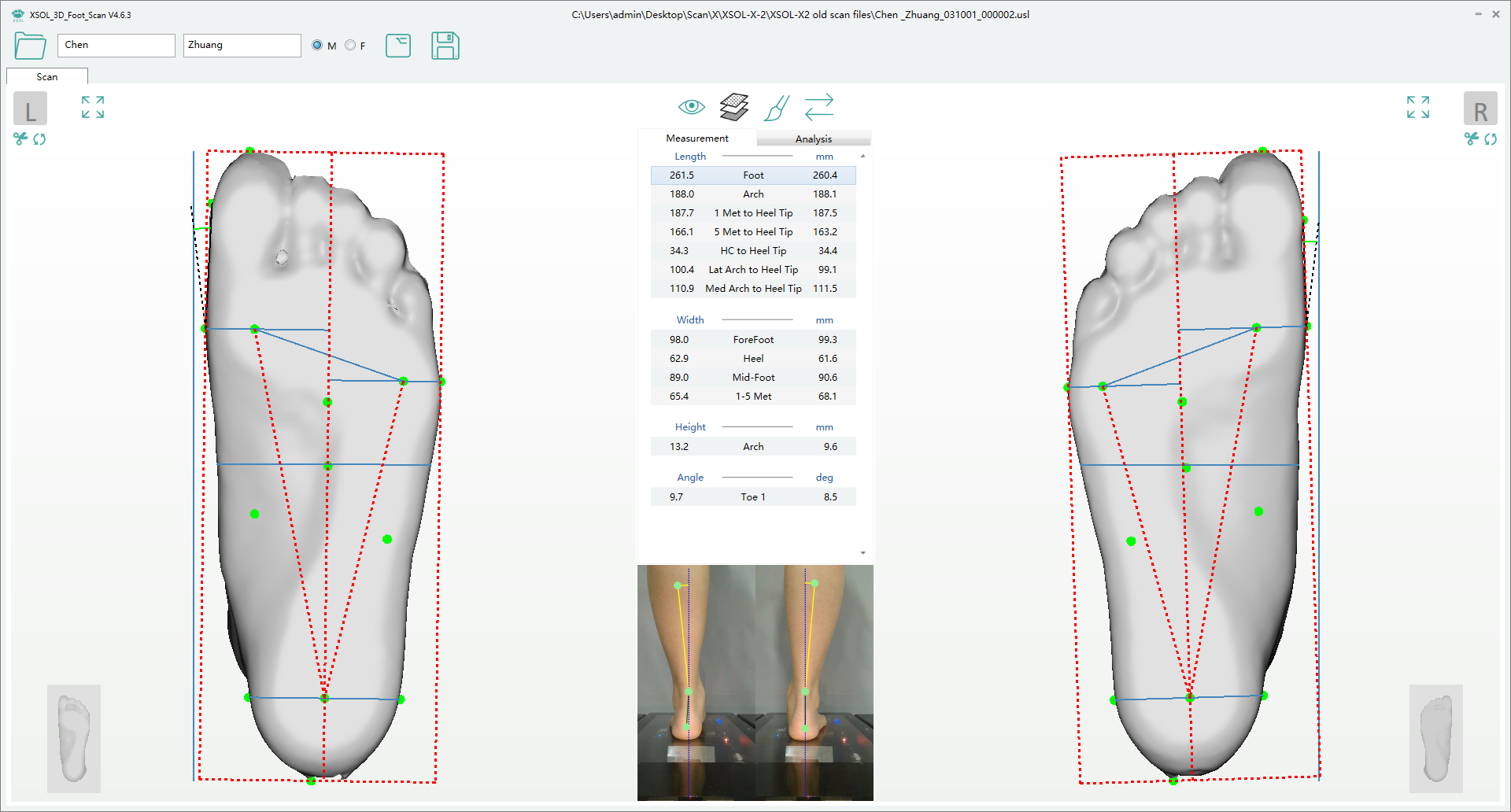

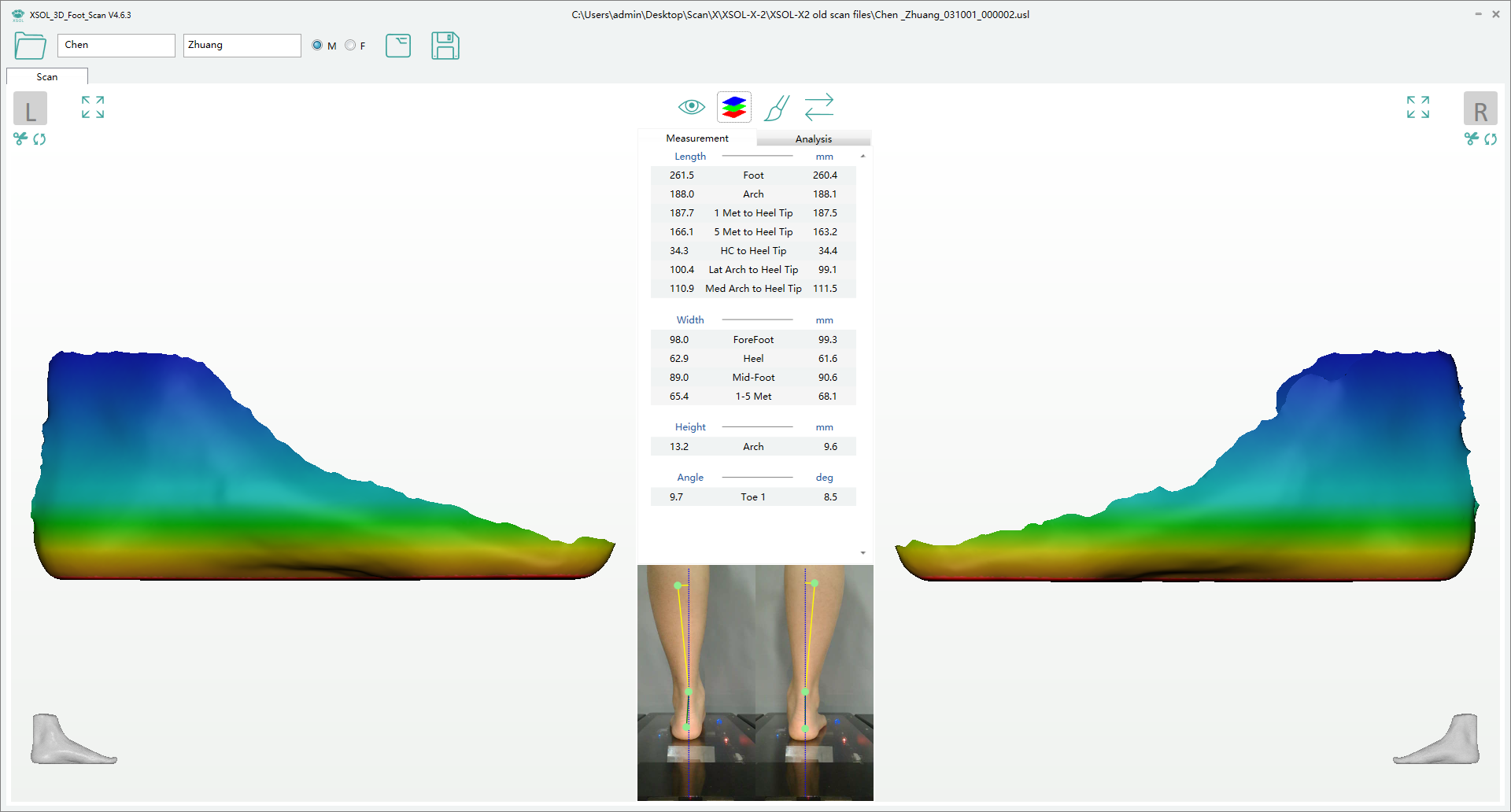

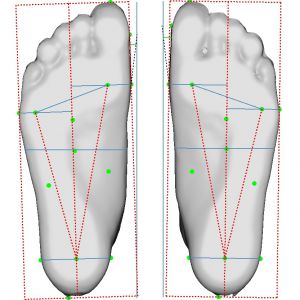

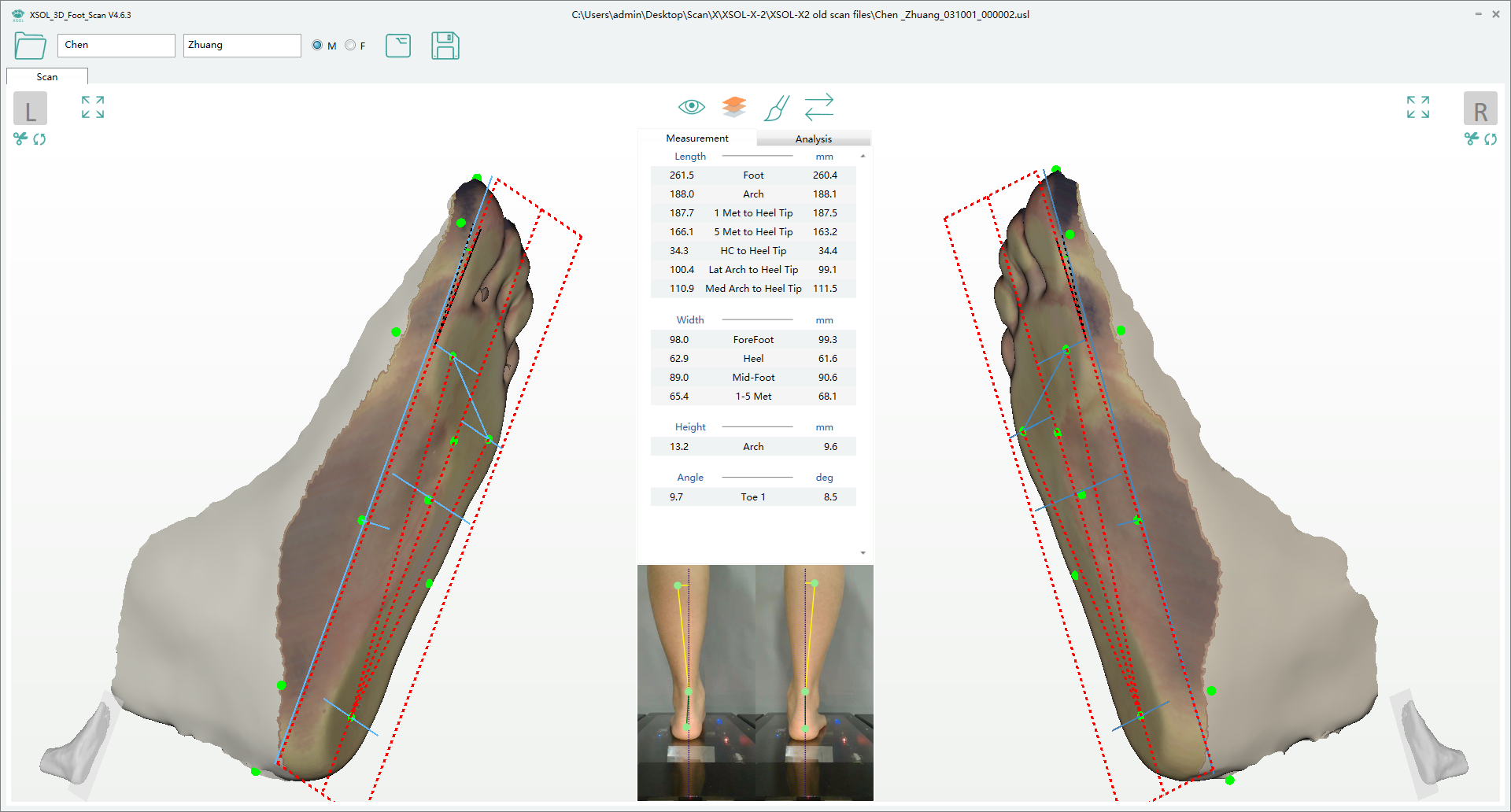

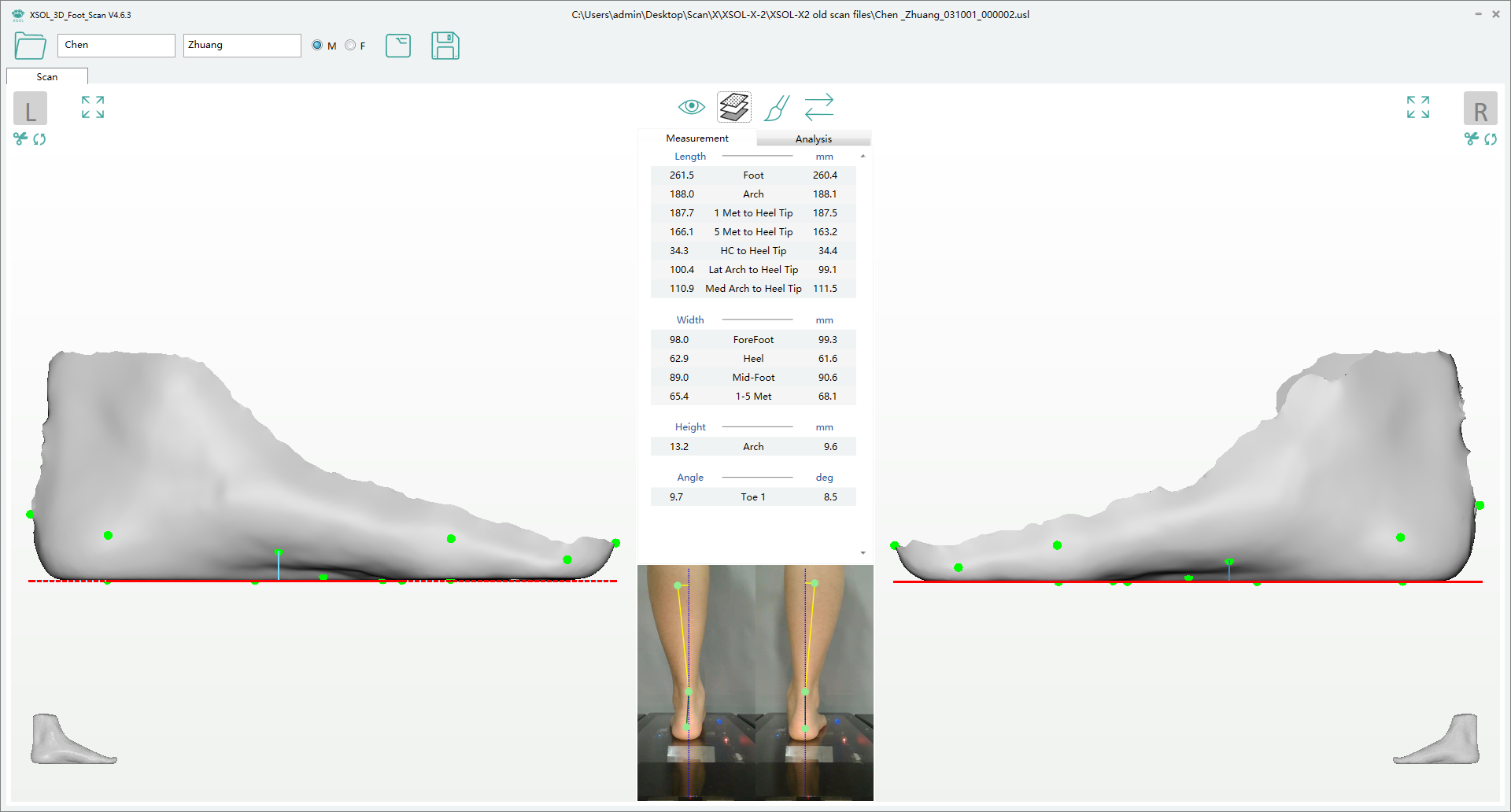

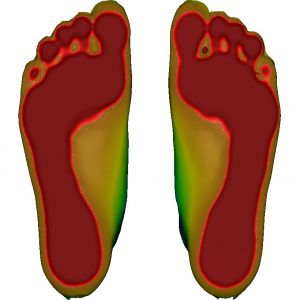

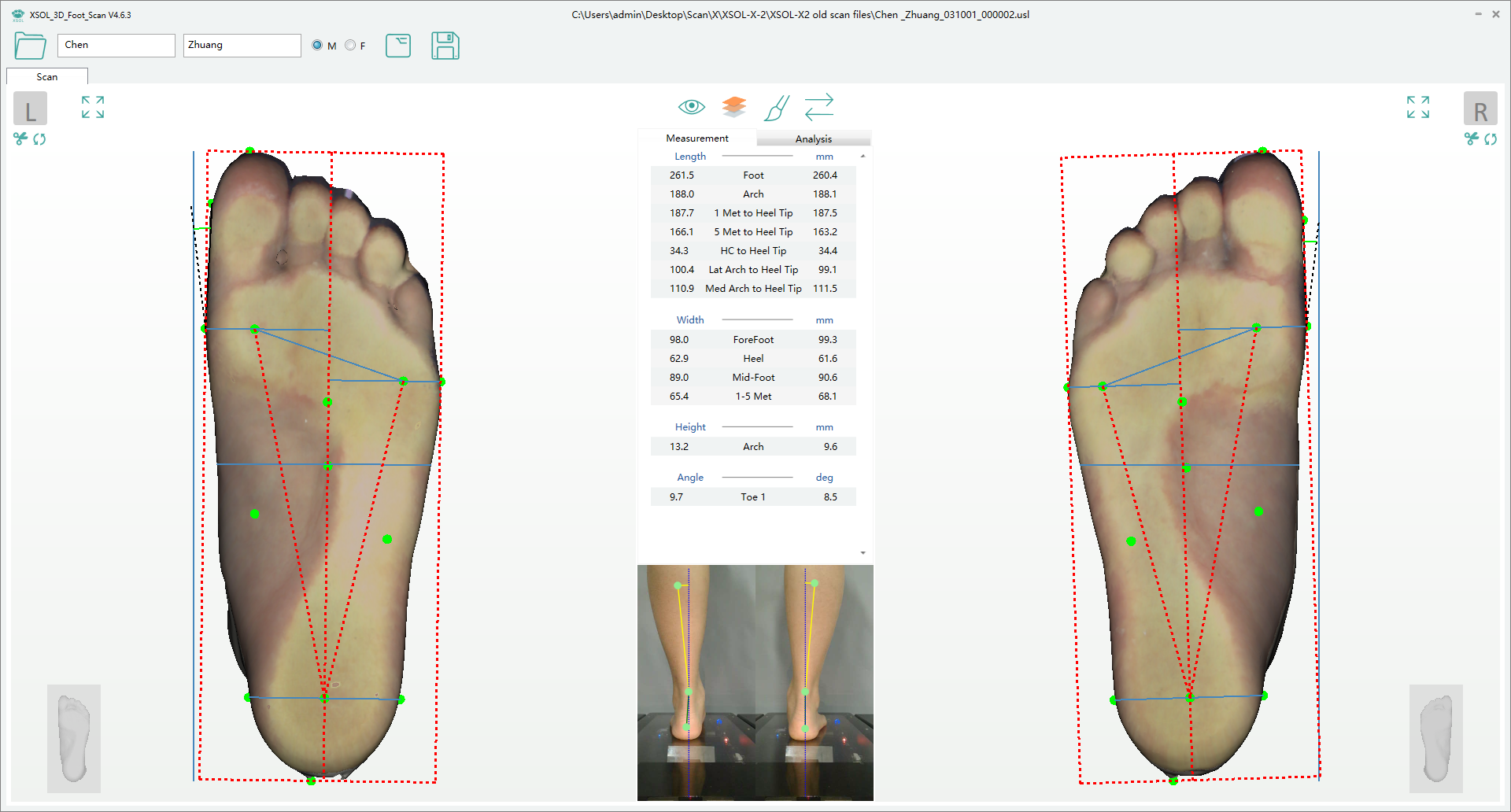

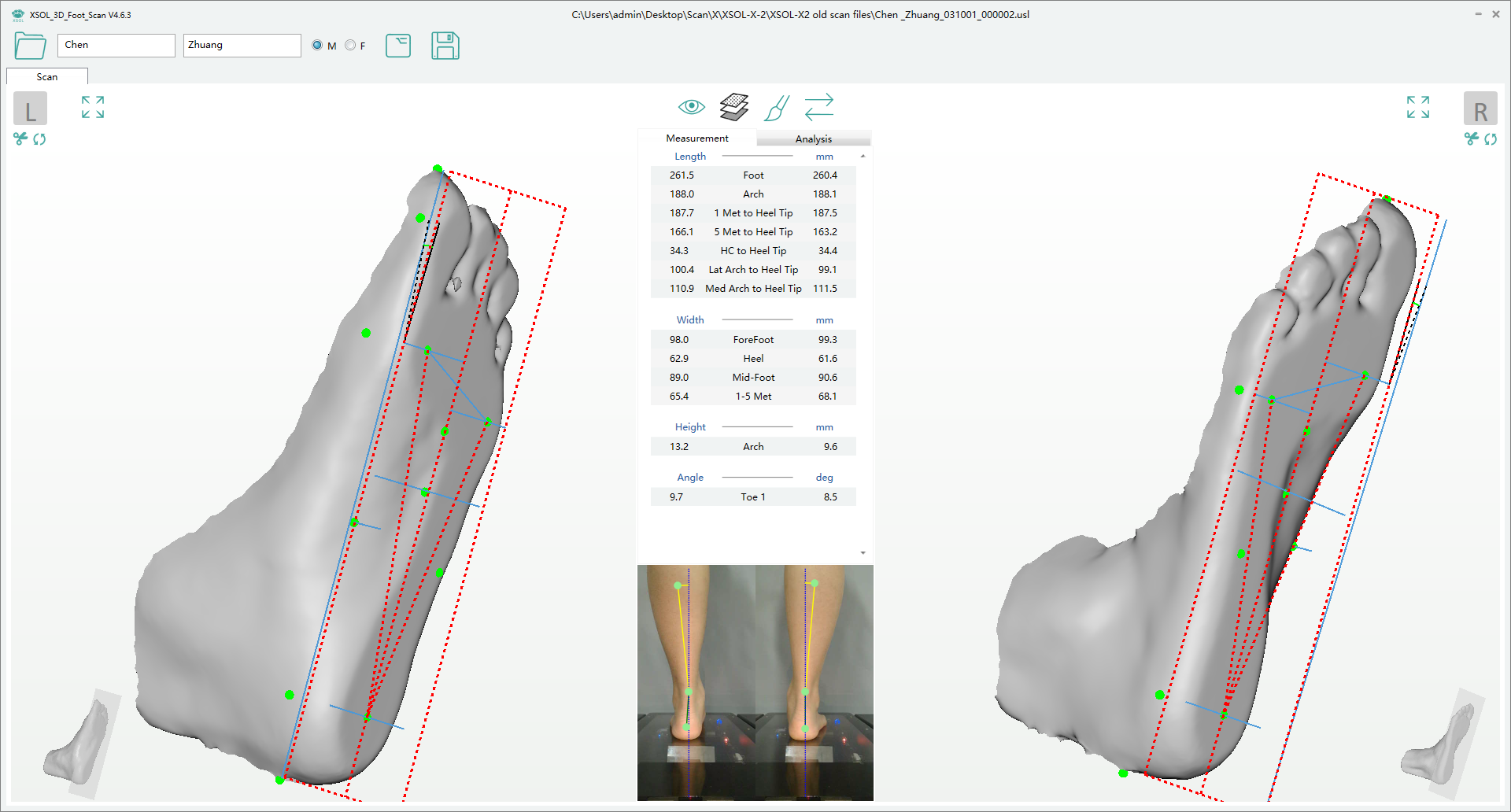

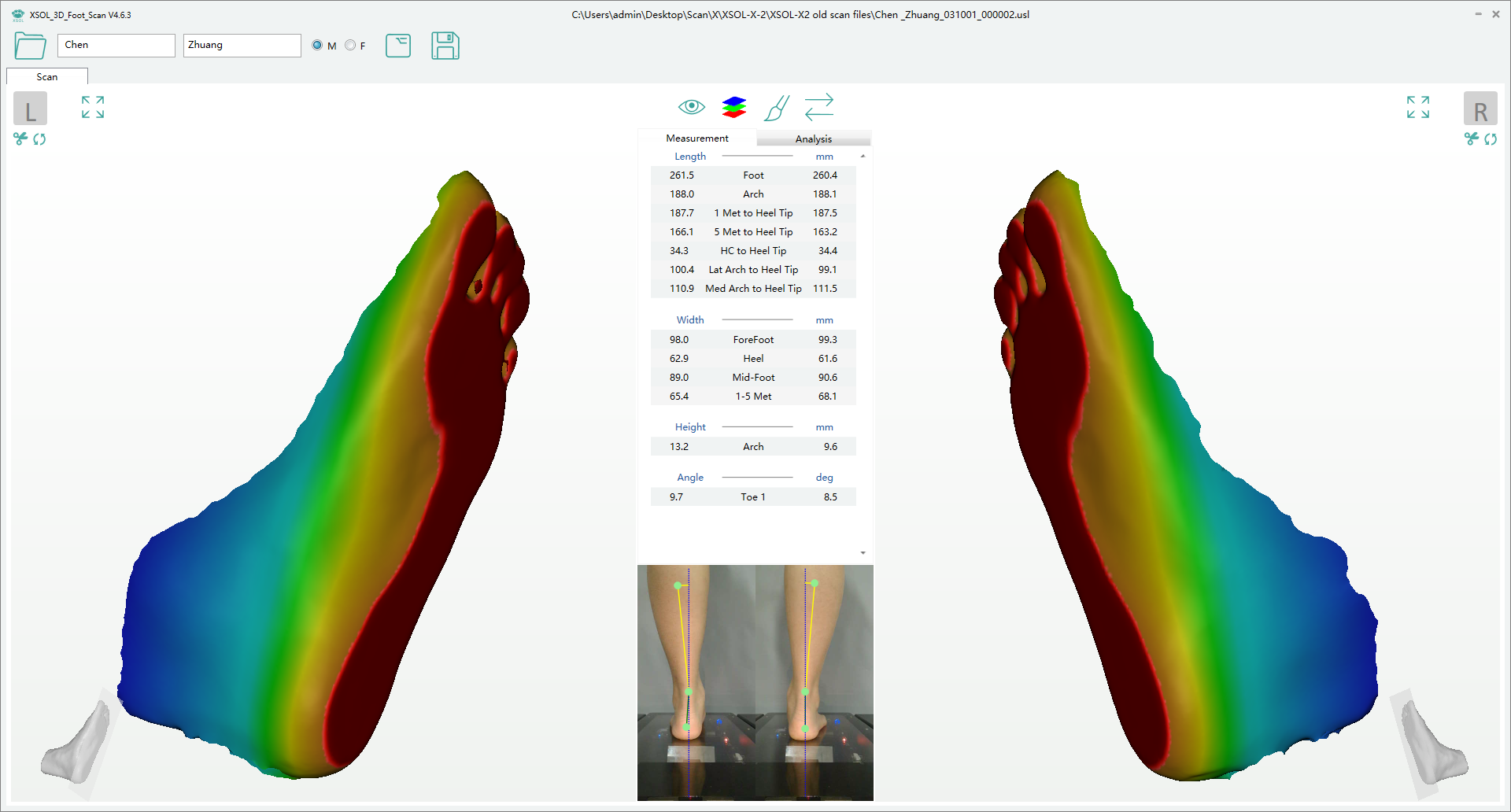

Auto analysis for arch type, bunion, and heel angle

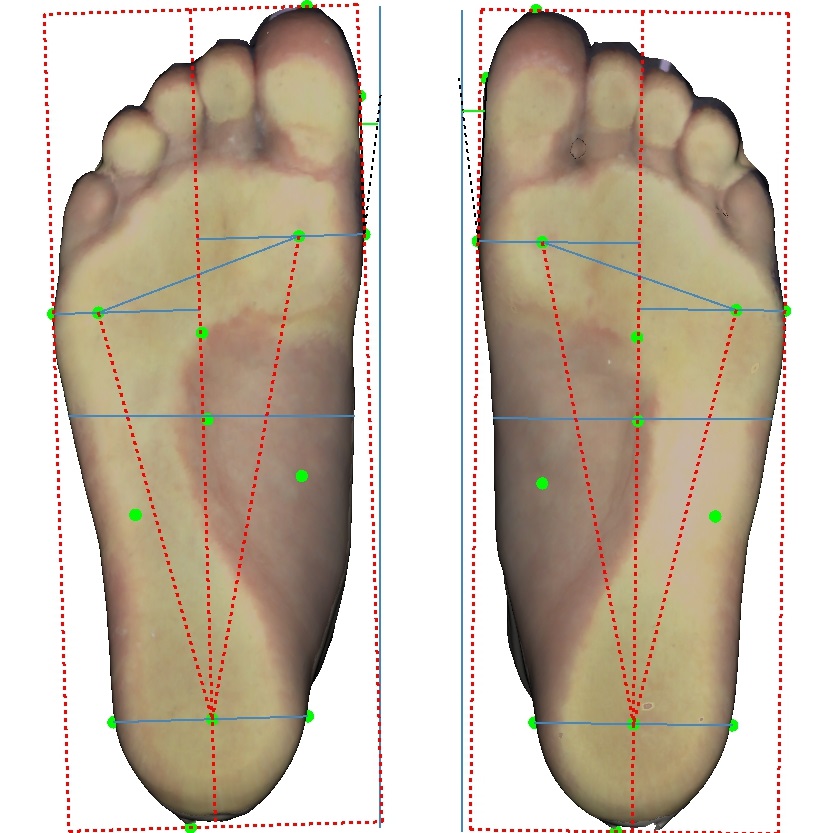

Auto tracking blue markers at 1st and 5th met points
Auto tracking blue markers at 3 heel points

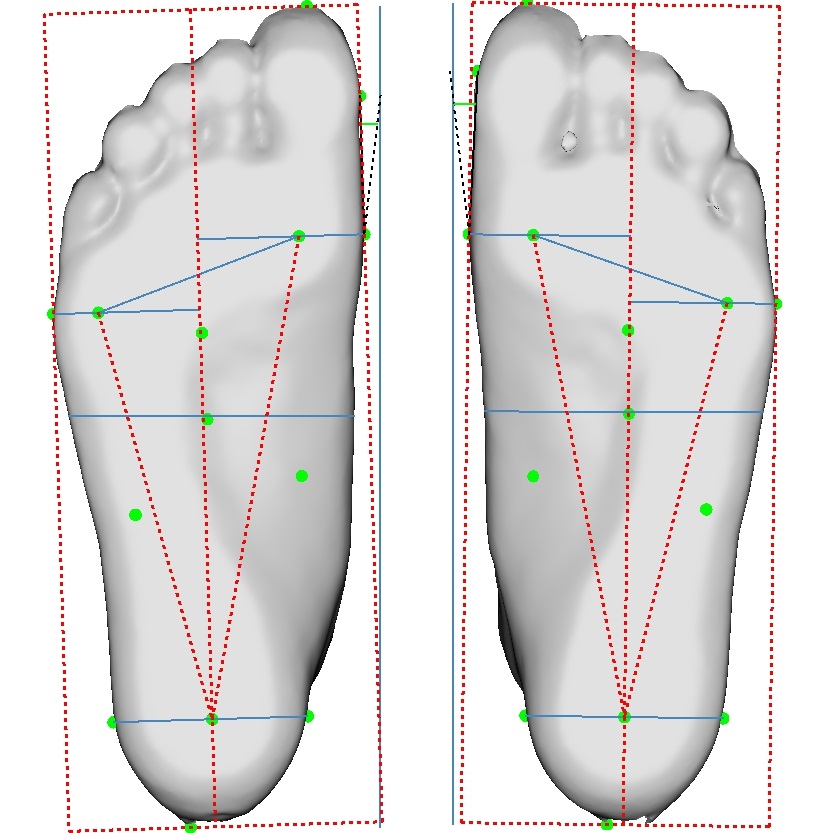

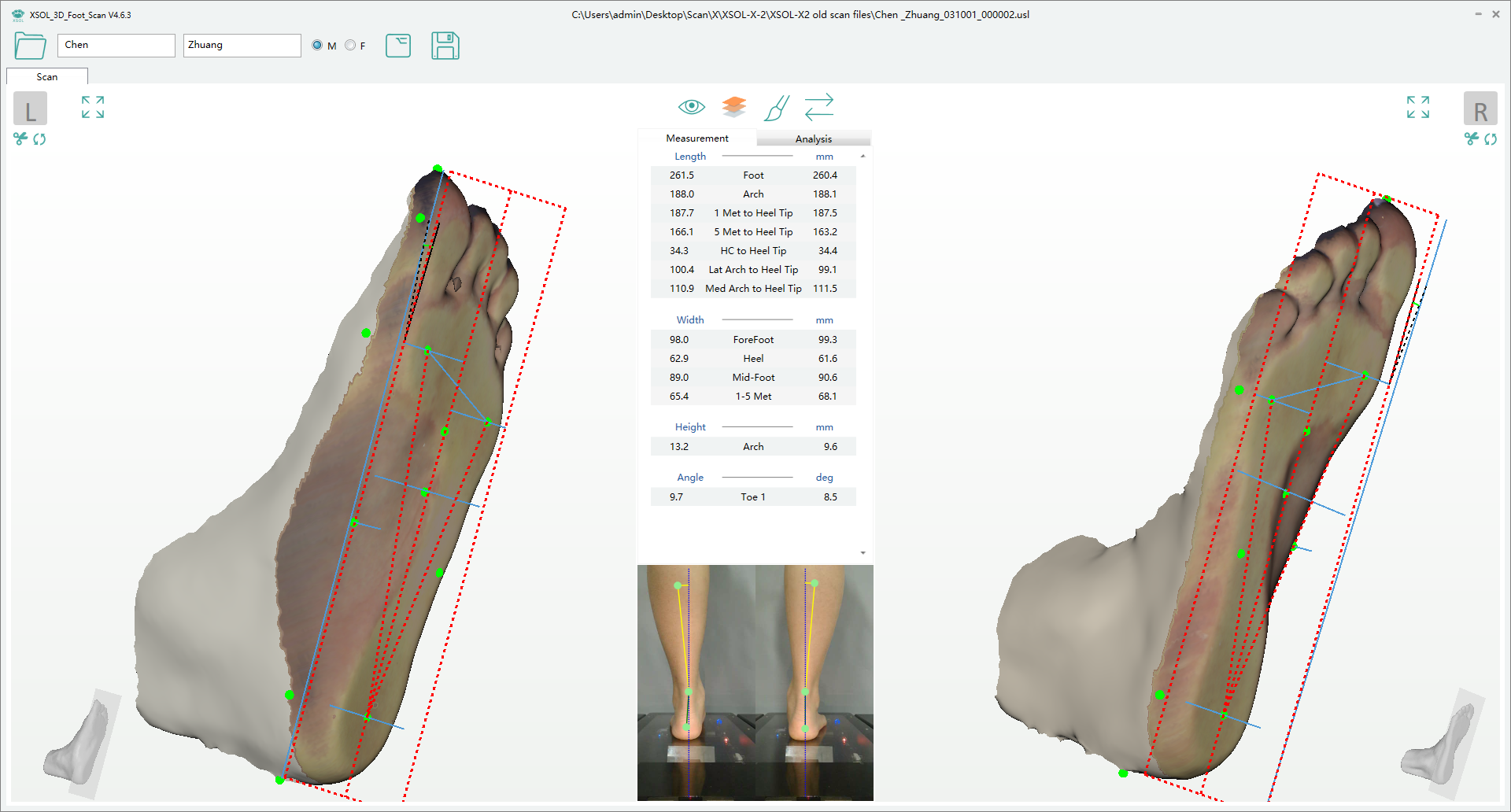

Mark landmarks on foot then drag points to match

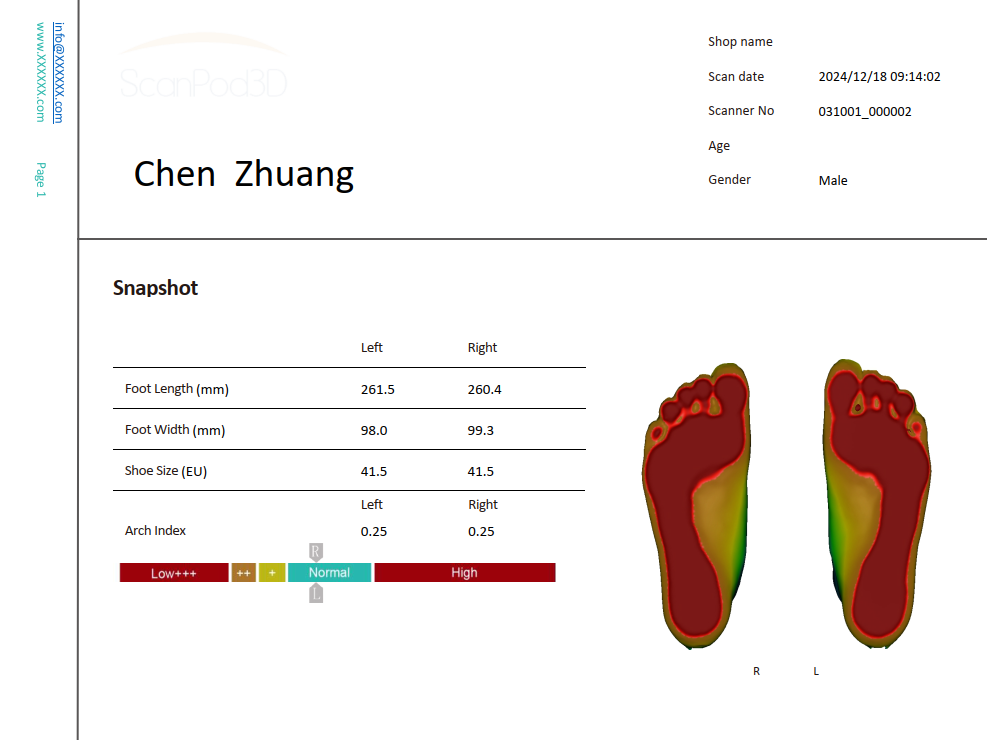

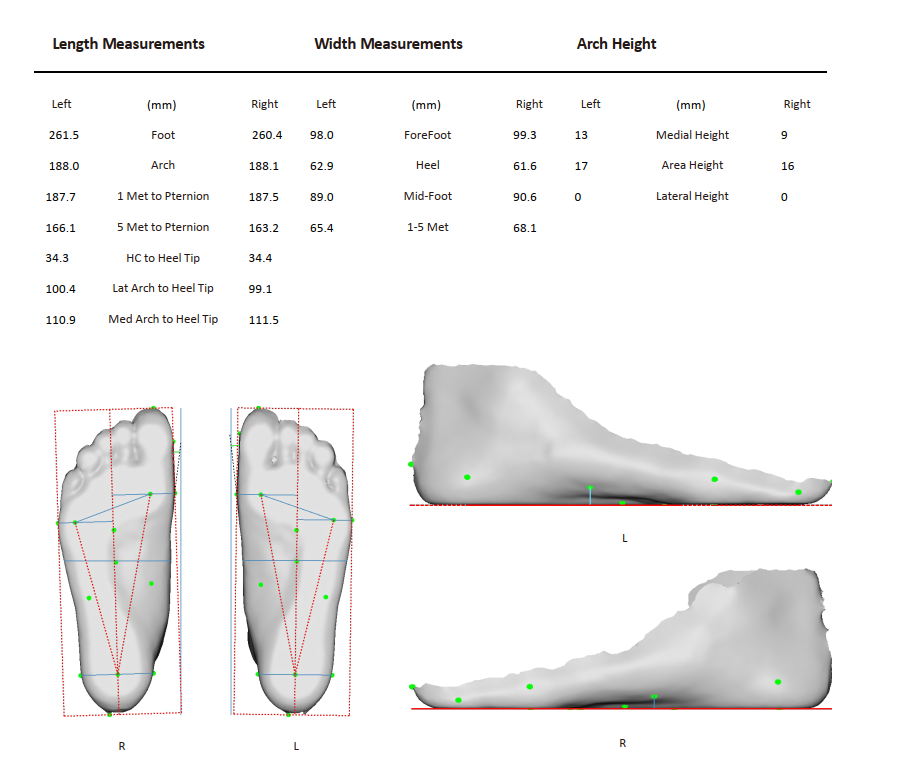

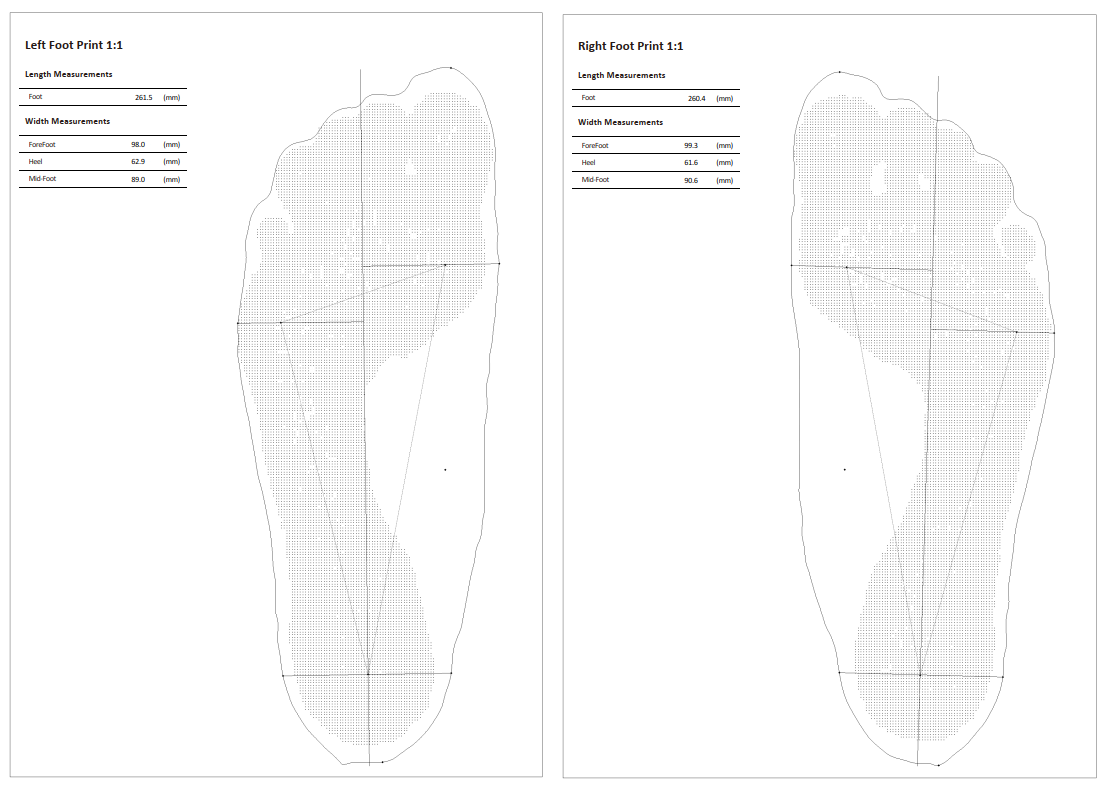

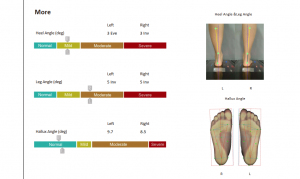

PDF Foot report with manual annotations
User-editable report templates, sell your own brand
User-define UI and icon color
Default English. Translate into your own local language
Shoe size US/UK/EU/CN/JP standards
Export to STL/WRL/OBJ/PLY, PDF report, CSV data files
FTP send order to shoe/insole fabrication

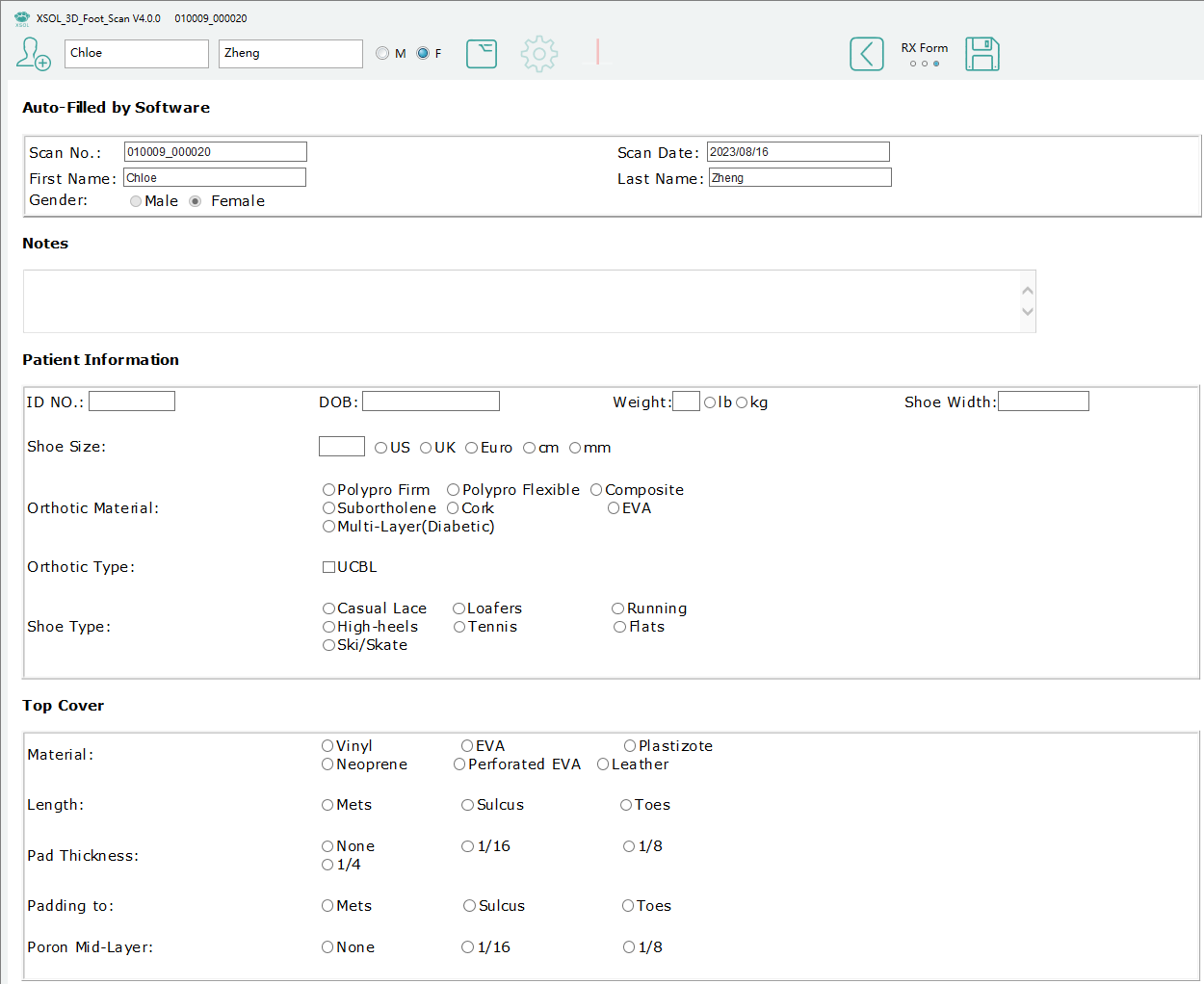

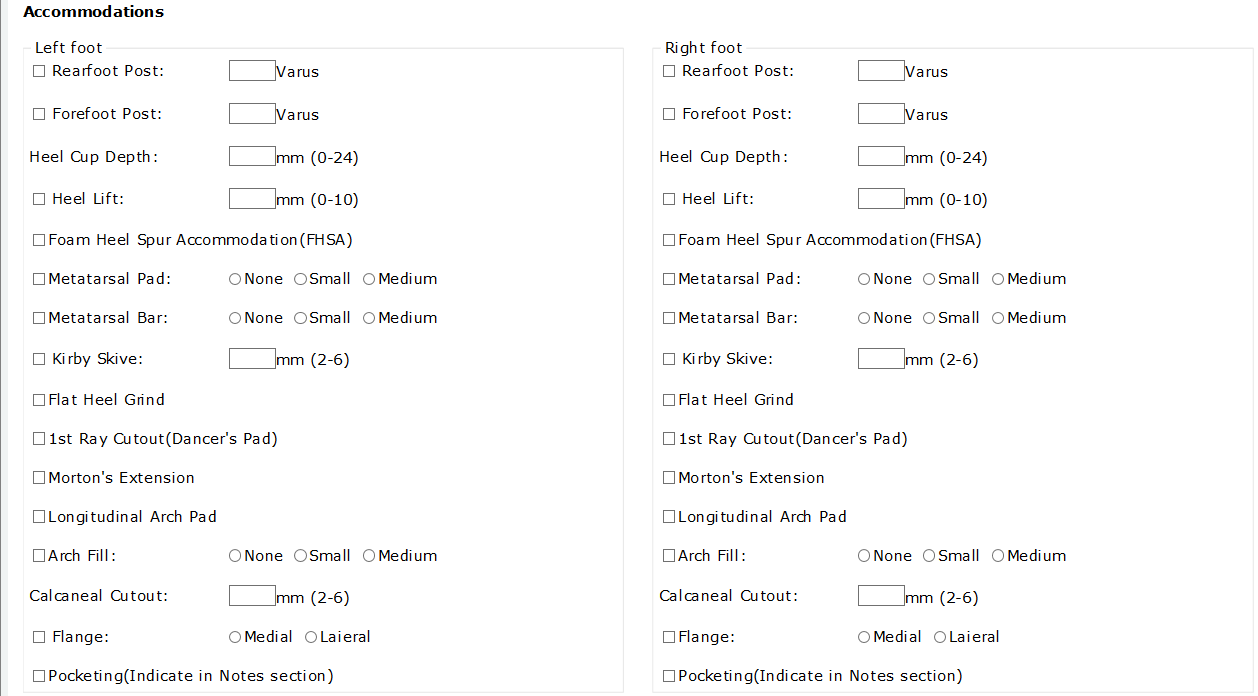

User-define RX form for orthopedic shoe/insole
Developers: CMD/TCP call scanner to receive data-integration into your own CAD software and database
Optional encrypt scanners to lock files

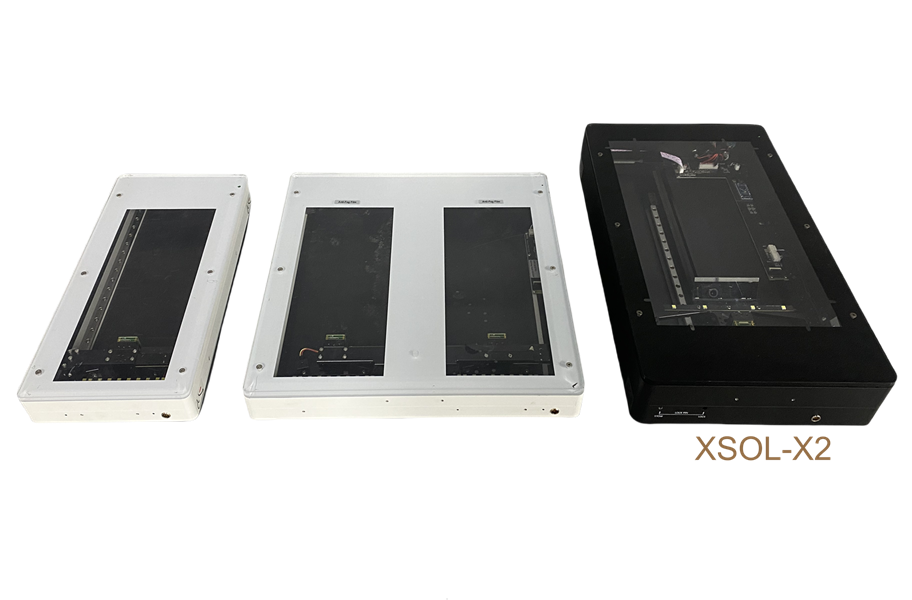

Also support USOL, USOL-DUO and USOL-X scanners

CONFIGURATIONS

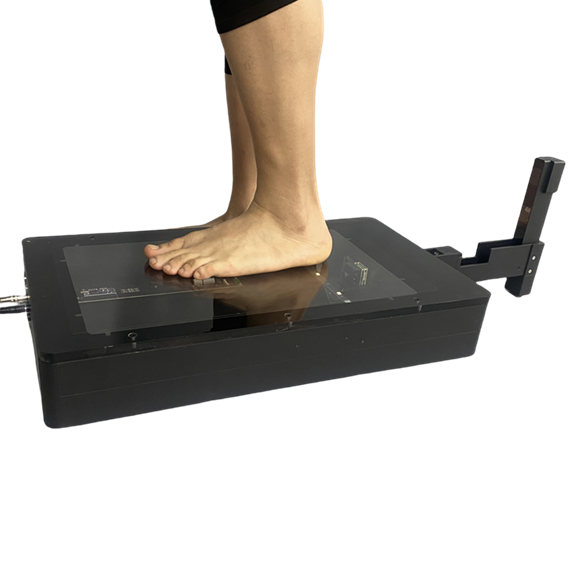

XSOL-X2 Standard

Scanner, Power Adapter, USB Cable (White), Foot Switch, Foldable Heel Camera (with laser).

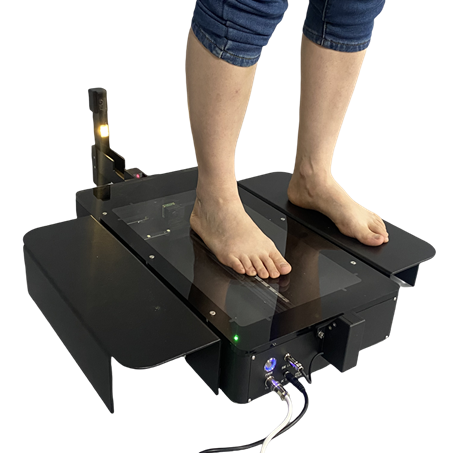

XSOL-X2 Floor

Standard plus Toe Laser, Side Steps (Pair).

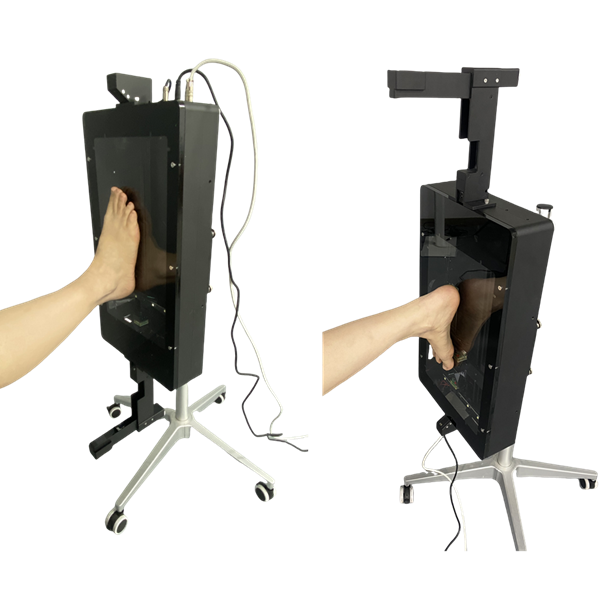

XSOL-X2 Vertical

XSOL-X2 Standard plus Toe Laser, Pedestal (with wheels) and VESA Conversion Bracket.
Pedestal needs assemble to reduce shipping size. Weight is 5KG. Support mounting position for supine or prone scans.
Height adjustable 500-1200mm. Heel Camera records heel position. Heel and Toe laser help to control foot posture.
