XPOD Product Line

TYPE FOOT SCAN FOAM SCAN Last SCAN REPORT

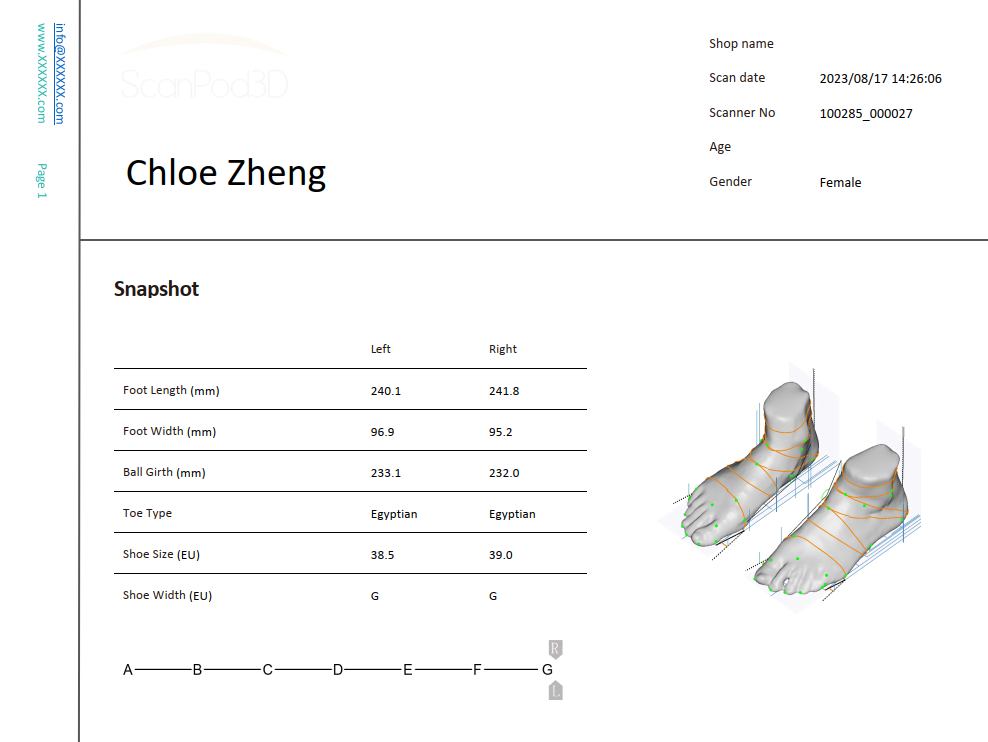

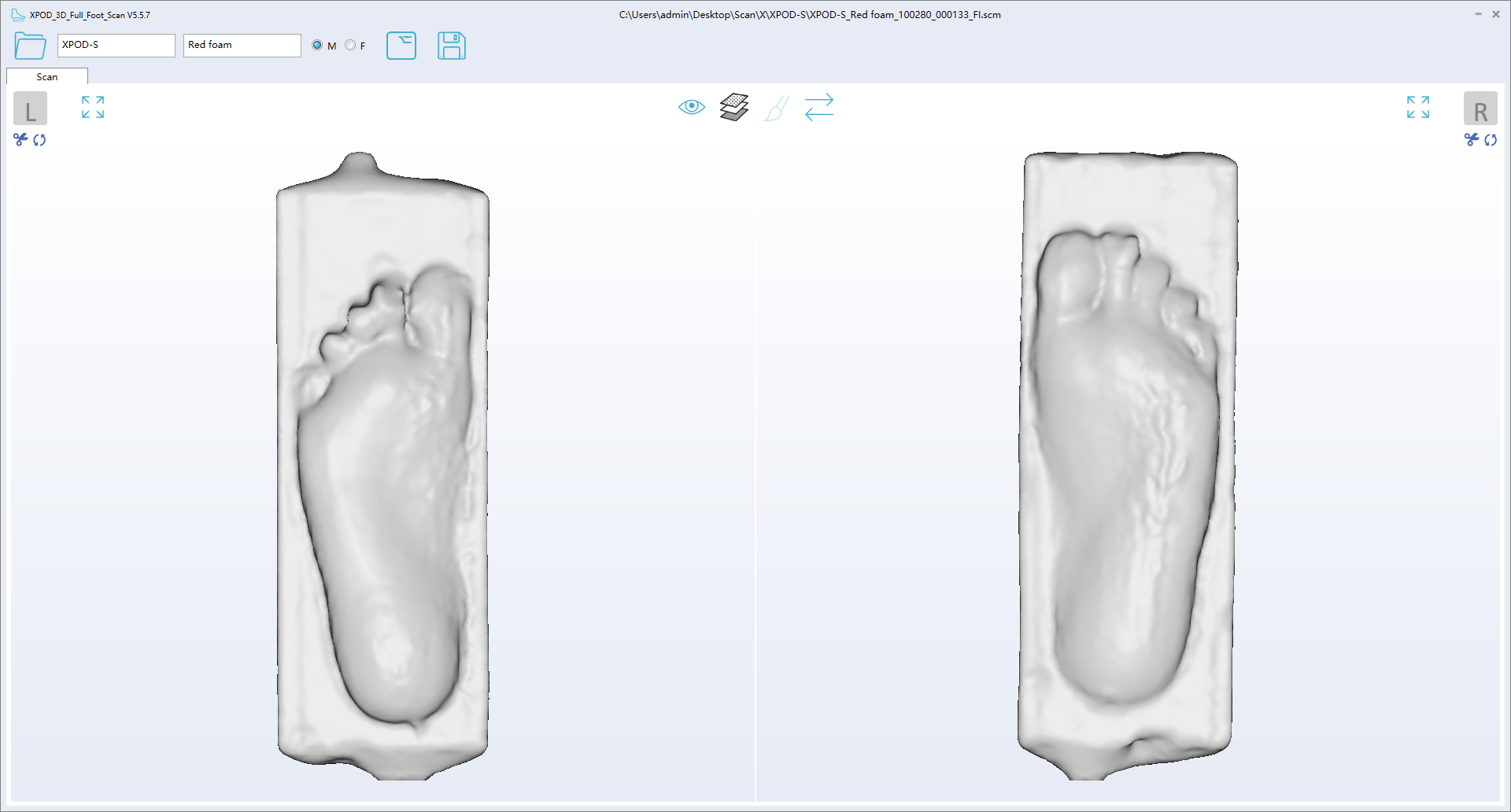

XPOD Full Foot ScannerXPOD-S XPOD Full Foot Scanner UI XPOD Full Foot Scanner Files XPOD Full Foot Scanner Files XPOD Full Foot Scanner Report

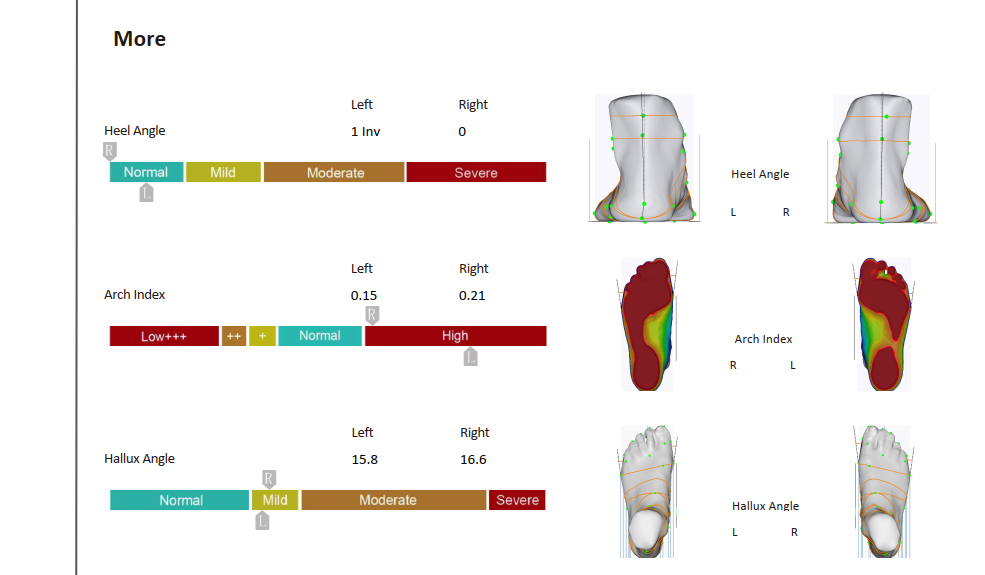

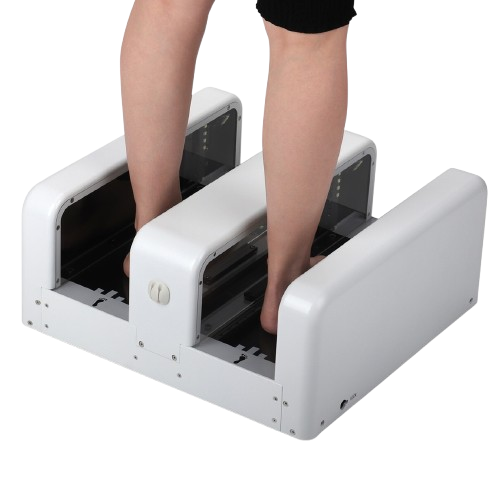

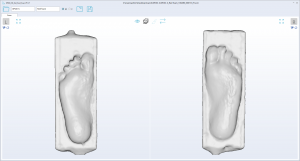

XPOD-SS2 Full Foot ScannerXPOD-SS2 XPOD-SS2 Full Foot Scanner UI XPOD-SS2 Full Foot Scanner Files XPOD Full Foot Scanner Files XPOD-SS2 Full Foot Scanner Report

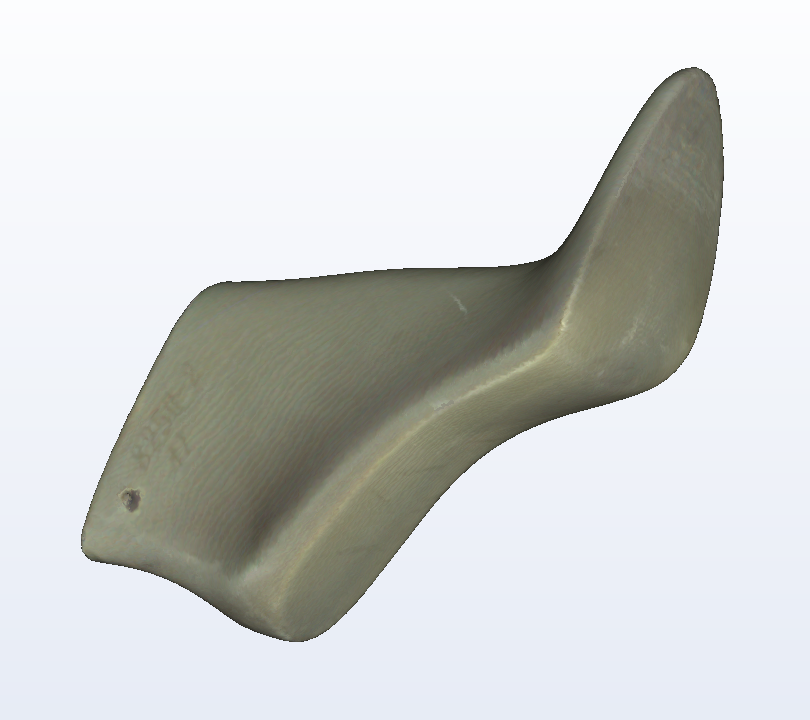

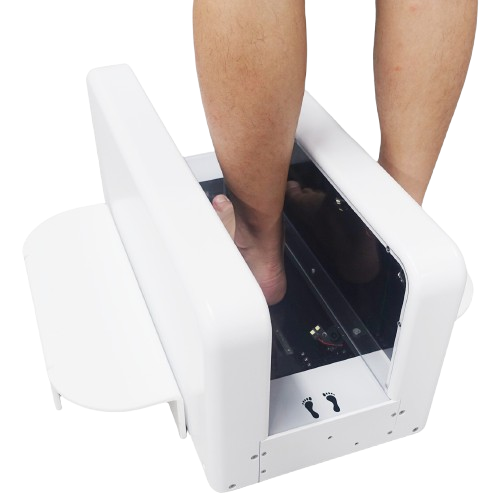

XPOD-HD Full Foot ScannerXPOD-HD XPOD-HD Full Foot Scanner UI XPOD-HD Full Foot Scanner Files XPOD-HD Full Foot Scanner Files XPOD-HD Full Foot Scanner Report

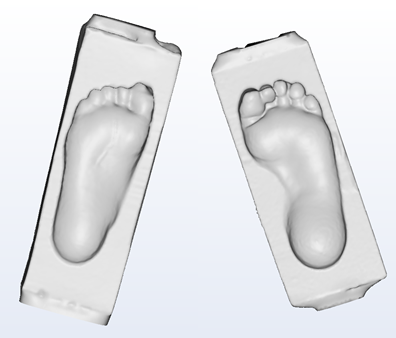

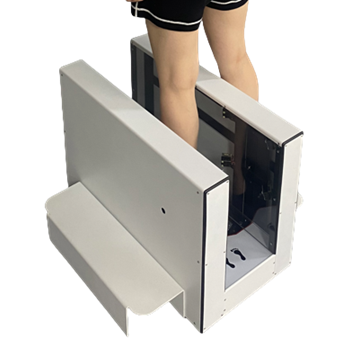

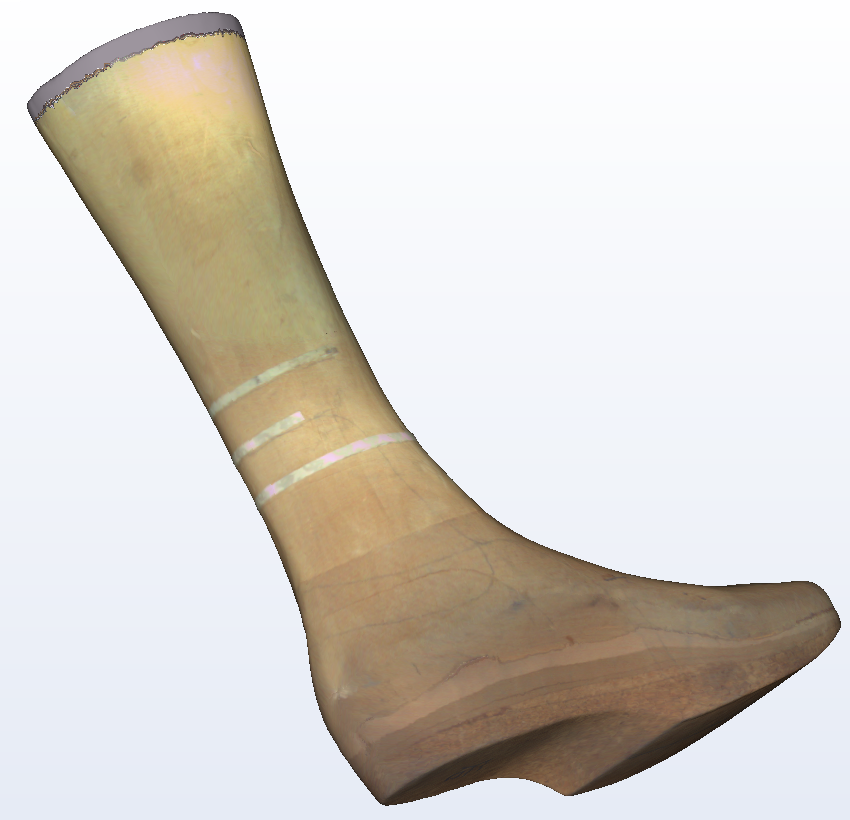

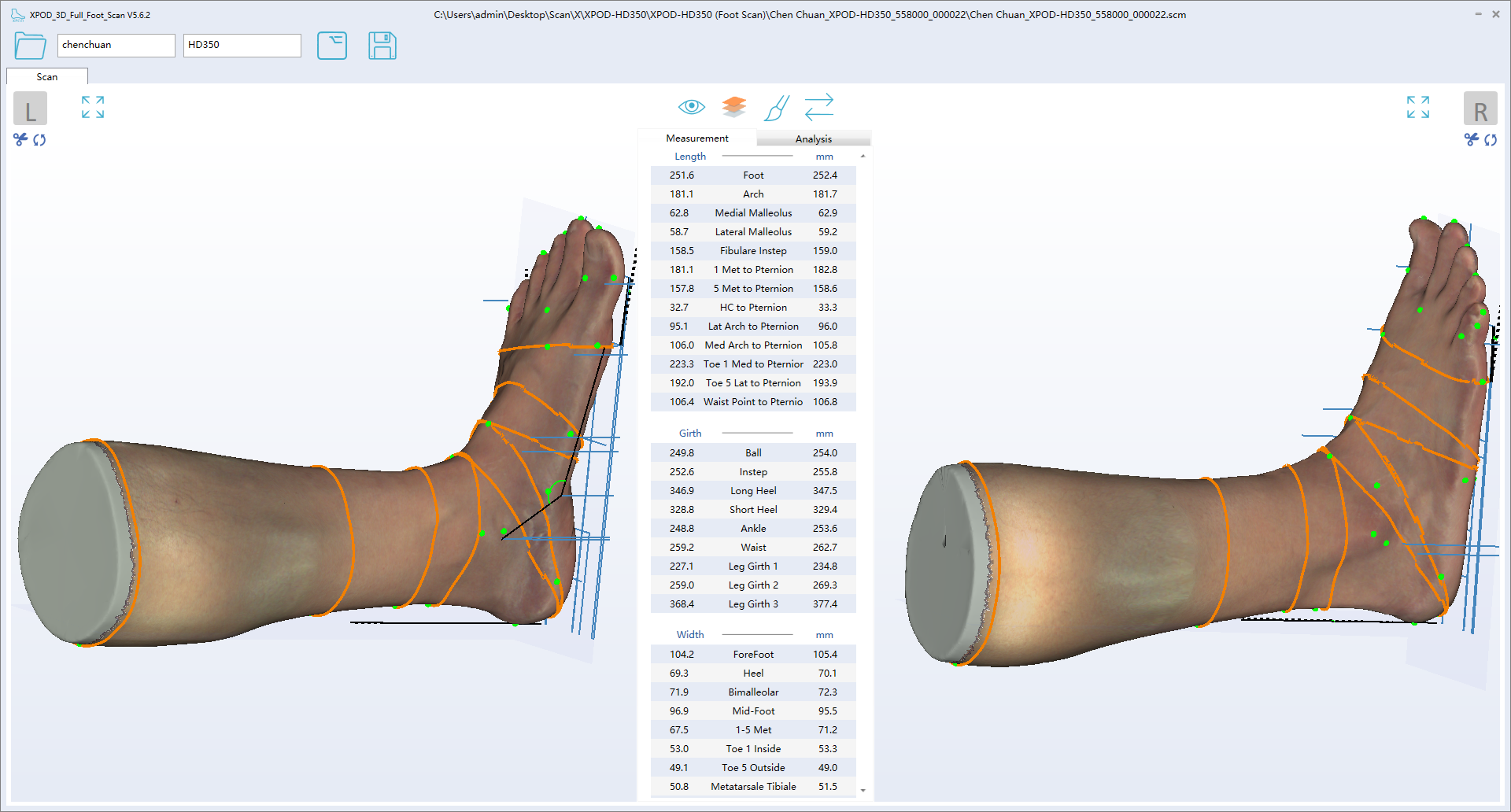

XPOD-HD350 Full Foot ScannerXPOD-HD350 XPOD-HD350 Full Foot Scanner UI XPOD-HD350 Full Foot Scanner Files XPOD-HD350 Full Foot Scanner Files XPOD-HD350 Full Foot Scanner Report

XPOD PRODUCT LINE

COMPARISON XPOD-S Full Foot Scanner
XSOL

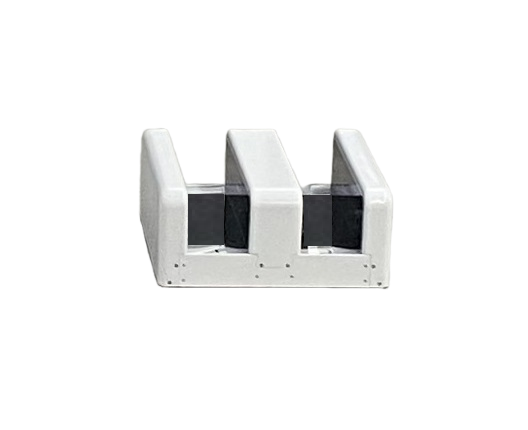

 XPOD-SS22 Full Foot Scanner
XSOL-DUO

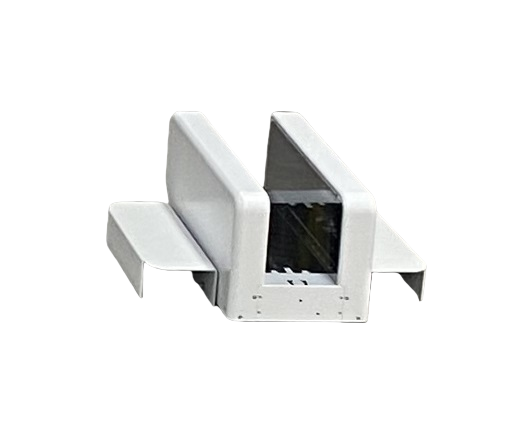

 XPOD-HD Full Foot Scanner
XSOL-X2
 XPOD-HD350 Full Foot Scanner
XSOL-X2
Foot/Foam Box/Shoe Last Yes/Yes/No Yes/Yes/No Yes/Yes/Yes Yes/Yes/Yes
Foot: Non/Full/Semi-Weight Yes/Yes/Yes
Scan Volume (mm) 330L * 130W * 115H 330L * 130W * 115H X2 380L * 150W * 175H 380L * 180W * 350H
3D Accuracy Clean 3D Mesh. +/-1.0mm. Clean 3D Mesh. +/-1.0mm. Clean 3D Mesh. +/-0.5mm. Clean 3D Mesh. +/-0.5mm.
3D Files
Color Texture (Round-Trip)		 STL/WRL/OBJ/PLY
Yes
Pedestal Yes Yes No No
Size (mm) / Weight (Kg) 475L * 255W * 216H / 6.6 475L * 494W * 216H / 11 625L * 290W * 275H / 10.2 660L * 340W * 460H / 20.1
Load Capacity 180 Kg
Minimum CPU
Minimum RAM
Speed
USB Port 2.0 or 3.0		 Intel i5-1240P
16G
2.7 ~ 6.8s
Yes		 Intel i5-1240P
16G
2.7 ~ 7.8s
Yes		 Intel i5-1240P
16G
3.6 ~ 13.3s
Yes		 Intel Core i9-12900HK
16G
3 ~ 10s
Yes
OS Windows 10/11 (Linux under development)
Power Supply (Adapter) 100~240V 50/60HZ AC to DC 12V/3.0A 100~240V 50/60HZ AC to DC 12V/5A 100~240V 50/60HZ AC to DC 12V/5A 100~240V 50/60HZ AC to DC 12V/6.67A
Indoor Lighting Condition Yes, no darkroom or shielding required. But should avoid direct sunlight.
Warranty (Limited) 1 Year (per warranty statement)
