XSOL Product Line

TYPE FOOT SCAN FOAM SCAN REPORT

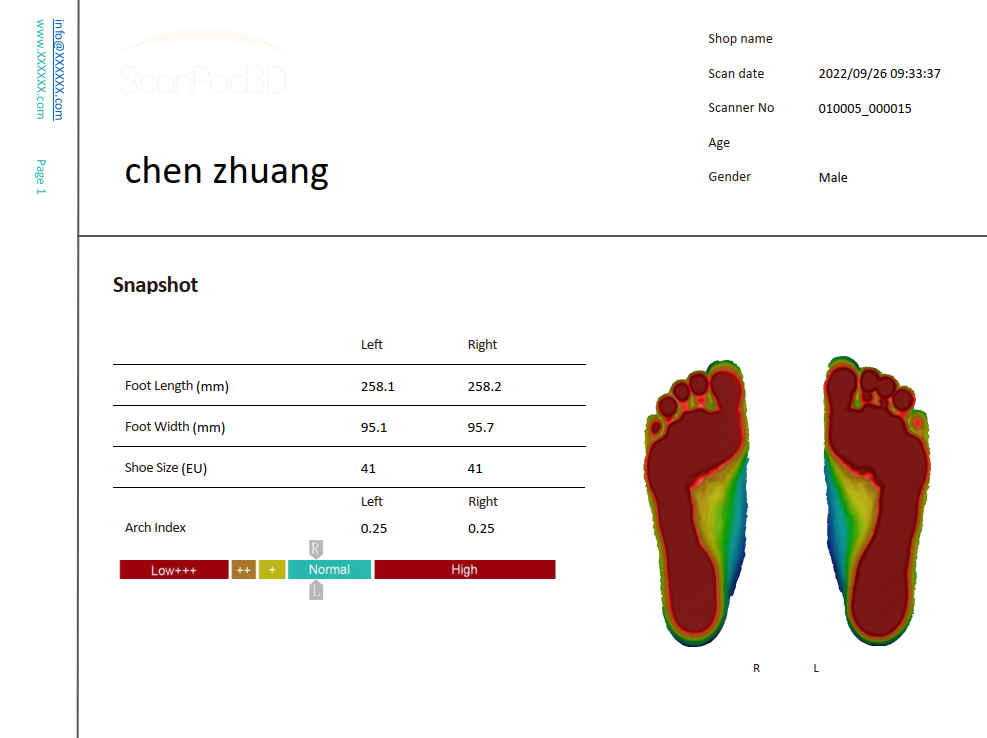

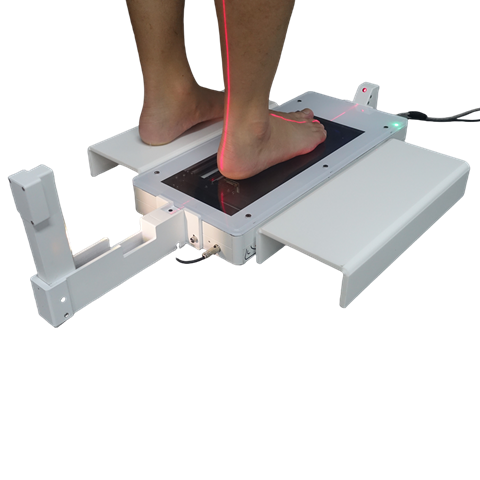

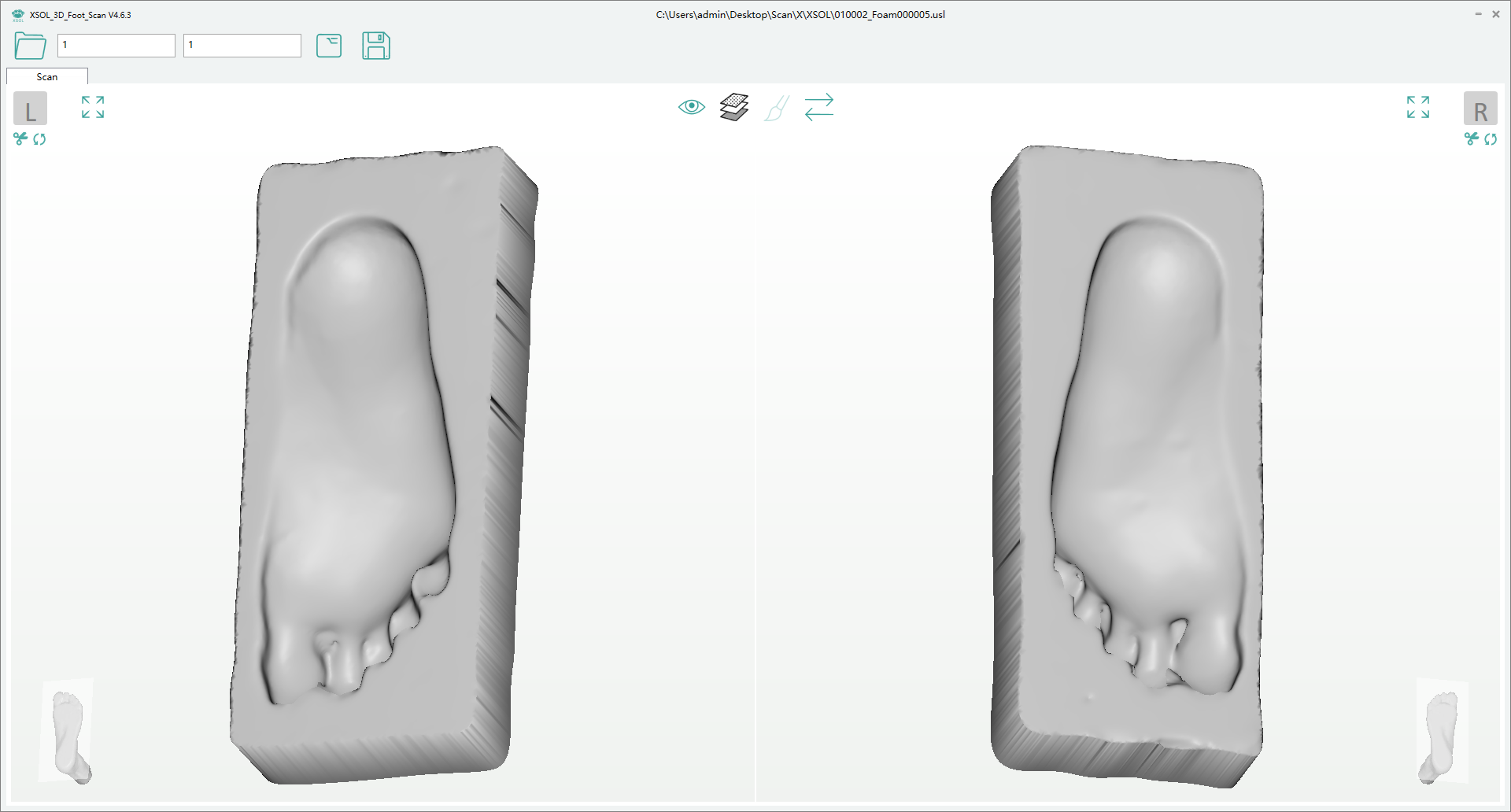

XSOL Foot Plantar ScannerXSOL XSOL Foot Plantar Scanner UI XSOL Foot Plantar Scanner Files XSOL Laser Foot Plantar Scanner Report

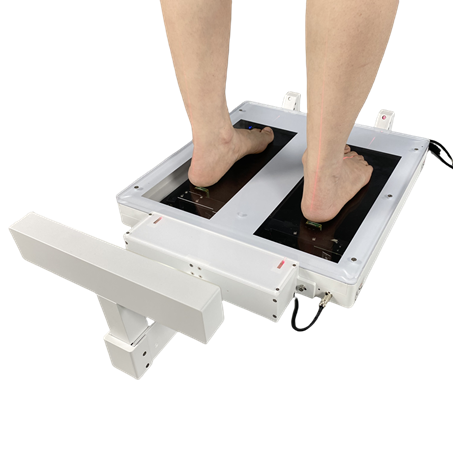

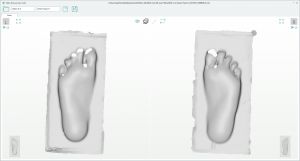

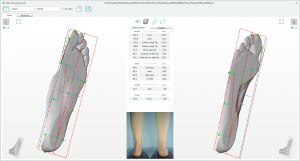

XSOL DUO Foot Plantar ScannerXSOL DUO XSOL DUO Foot Plantar Scanner UI XSOL DUO Foot Plantar Scanner Files XSOL DUO Foot Plantar Scanner Report

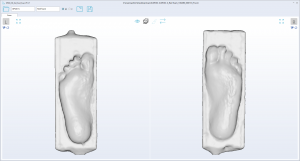

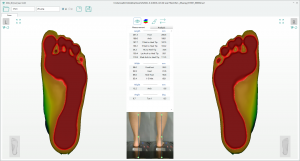

XSOL X2 Foot Plantar ScannerXSOL X2 XSOL X2 Foot Plantar Scanner UI XSOL X2 Foot Plantar Scanner Files XSOL X2 Foot Plantar Scanner Report

XSOL PRODUCT LINE

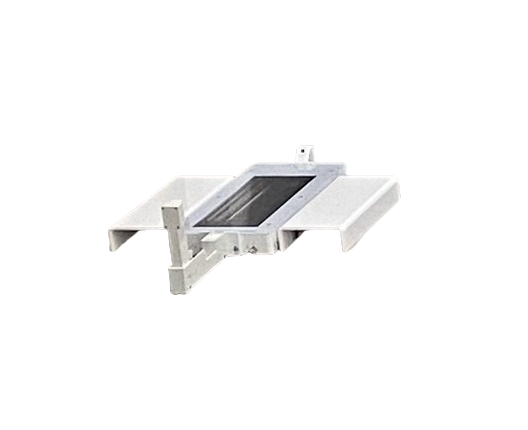

COMPARISON XSOL Foot Plantar Scanner
XSOL
 XSOL Foot Plantar Scanner

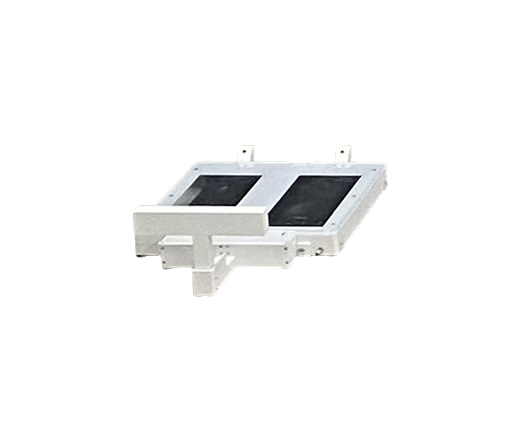

XSOL-DUO
 XSOL Foot Plantar Scanner
XSOL-X2
Foot/Foam Box/Plaster Cast Yes/Yes/Yes
Foot: Non/Full/Semi-Weight Yes/Yes/Yes
Scan Volume (mm) 330L * 140W * 80H 330L * 140W * 80H X2 350L * 150W * 80H
3D Accuracy Clean 3D Mesh. +/-1.0mm.
3D Files
Color Texture (Round-Trip)		 STL/WRL/OBJ/PLY
Yes
Heel Camera/Heel Laser/Toe Laser Yes/Yes/Yes
Size (mm) / Weight (Kg) 455L * 212W * 55H / 3.2 455L * 430W * 59H / 6.6 565L * 310W * 93H / 7.6
Load Capacity 180 Kg
Minimum CPU
Minimum RAM
Speed
USB Port 2.0 or 3.0		 Intel N100
8G
2.0 ~ 4.9s
Yes		 Intel N100
8G
2.0 ~ 4.9s
Yes		 Intel N100
8G
4.3 ~ 5.9s
Yes
OS Windows 10/11 (Linux under development)
Power Supply (Adapter) 100~240V 50/60HZ AC to DC 12V/3.0A
Indoor Lighting Condition Yes, no darkroom or shielding required. But should avoid direct sunlight.
Warranty (Limited) 1 Year (per warranty statement)
